Serveron TM8 On-Line Dissolved Gas Monitor

Brand: Qualitrol Company

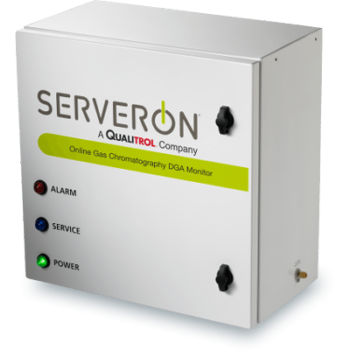

The TM8 is our industry leading 8 gas online DGA monitor. Based on an analytical platform built around a Gas Chromatogram (GC) the TM8 takes the recognized laboratory technology onto your transformer. Unprecedented accuracy and repeatability make the TM8 the perfect solution for monitoring mission critical applications where compromise is not allowed. The TM8 will provide a laboratory quality set of DGA results every 4 hours and up to once per hour under active fault conditions. With TM8 you can simultaneously track DGA, moisture, temperature and load on your transformer.
Features
  • Correlates all 8 fault gases, moisture-in-oil, oil temperature, and ambient temperature to transformer load
  • TM View software provides powerful tools to manage your fleet of DGA transformer monitors, focusing attention on alarming assets and simplifying the analysis of data which warrants further review
  • Automatic download of DGA data to a central database
  • Graphing and trending of DGA data
  • IEEE and IEC diagnostic tools such as  Rogers Ratios, and the Duvals Triangles 1, 4 & 5 and  Duvals Pentagon for advanced diagnostics

Specifications

Accuracy

  • Acetylene (C₂H₂): ± 5 % or ± 1 ppm
  • Hydrogen (H₂), Ethylene (C₂H₄): ± 5 % or ± 3 ppm
  • Methane (CH₄), Carbon Monoxide (CO), Carbon Dioxide (CO₂), Ethane (C₂H₆): ± 5 % or ± 5 ppm
  • Moisture-in-Oil: ± 2 %
  • Nitrogen (N₂): ± 10 % or ± 5,000 ppm
  • Oil Temperature: 0.1° C Typical
  • Oxygen (O₂): ± 5 % or 30 / -0 ppm

Alarm

  • Gas Caution & Alarm for Level (ppm)
  • Power and/or Service Event
  • Rate-of-Change (ppm/day)
  • Two Individually Programmable Relays: 50 Vdc or 240 Vac at 3 A, Max.

Analog Input

  • Three (3) Analog 4-20 mA

Cold Start Temperature

  • -20° C (-4° F)

Communication

  • Optional Interfaces: Cellular Modem, Ethernet Copper (10/100Base-TX), Wireless Radio, V.92 Internal POTS Modem
  • Standard Interfaces: RS-232, RS-485, Ethernet Fiber (100Base-FX)
  • Supported Protocols: TCP/IP, DNP3, Modbus RTU, ASCII, OPC & IEC 61850

Current

  • 3 A, Max.
  • 6 A, Max.

Enclosure Rating

  • NEMA 4X, IP66

Frequency

  • 50/60 Hz

Immunity

  • Conducted RF Immunity: EN 61326-1: 2006 (IEC 61000-4-6: 2009)
  • EFT: EN 61326-1: 2006 (IEC 61000-4-4: 2004 A1: 2010)
  • ESD: EN 61326-1: 2006 (IEC 61000-4-2: 2009)
  • Magnetic Field Immunity: EN 61326-1: 2006 (IEC 61000-4-8: 2010)
  • Radiated Immunity: EN 61326-1: 2006 (IEC 61000-4-3: 2006 A2: 2010)
  • Surge: EN 61326-1: 2006 (IEC 61000-4-5: 2006)
  • Voltage Dips & Interrupts: EN 61326-1: 2006 (IEC 61000-4-11: 2004)

Oil Inlet Pressure

  • psi: 0 to 45 (kPa: 0 to 300, bar: 0 to 3)

Oil Temperature Range

  • -40° to 180° C (-40° to 356° F)

Operating Humidity

  • 5 to 95 % Relative Humidity, Non-Condensing

Operating Temperature

  • -50° to 55° C (-58° to 131° F)

Radiated & Conducted Emissions

  • Current Harmonics: EN 61000-3-2: 2006 (EN 61000-3-2: 2006 A1: 2009 Class A)
  • Radiated & Conducted Emissions: EN 61326-1: 2006 (CISPR 11: 2009 A1: 2010 Class A)
  • Voltage Fluctuations: EN 61000-3-3: 2008 (EN 61000-3-3: 2008 Class A)

Range

  • Acetylene (C₂H₂): 1-3,000 ppm
  • Carbon Dioxide (CO₂): 5-30,000 ppm
  • Carbon Monoxide (CO): 5-10,000 ppm
  • Ethane (C₂H₆): 5-5,000 ppm
  • Ethylene (C₂H₄): 3-5,000 ppm
  • Hydrogen (H₂): 3-3,000 ppm
  • Methane (CH₄): 5-7,000 ppm
  • Moisture-in-Oil: 0-100 % RS
  • Nitrogen (N₂): 5,000-100,000 ppm
  • Oxygen (O₂): 30-25,000 ppm

Repeatability

  • Hydrogen (H₂), Acetylene (C₂H₂): < 2 %
  • Nitrogen (N₂): < 20 %
  • Oxygen (O₂), Methane (CH₄), Carbon Dioxide (CO₂), Ethylene (C₂H₄), Ethane (C₂H₆): < 1 %

Safety

  • CSA C22.2 No. 61010-1-04
  • IEC 61010-1, 61010-2-81
  • UL 61010-1 (2nd Edition)

Storage Humidity

  • 5 to 95 % Relative Humidity, Non-Condensing

Storage Temperature

  • -40° to 75° C (-40° to 167° F)

Voltage

  • 115 Vac or 230 Vac ± 15 %
