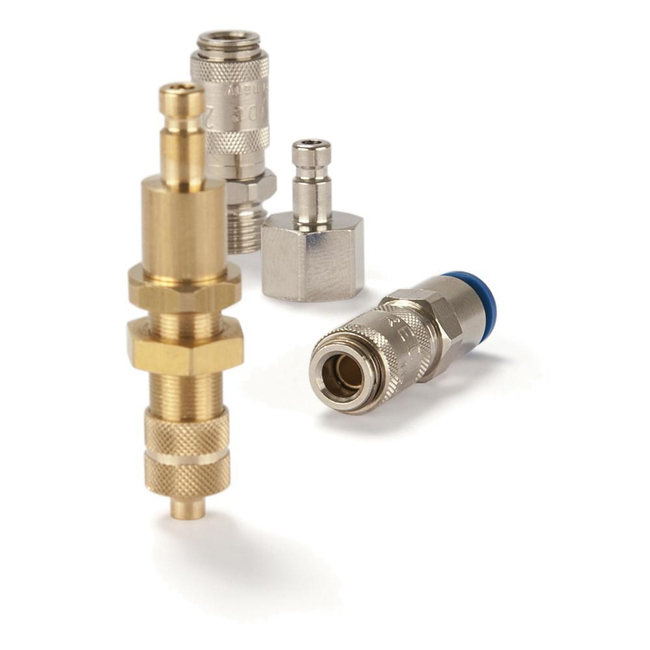

Quick Coupling with An Internationally Used Profile, Series 20
Brand: Rectus - by ParkerParker's Series 20 is a mini industrial coupling with internationally used profile. It's especially suitable for use in medical technology and chemistry/pharmacy.
The coupling system is developed for single-hand operation.
This series has a high flow rate despite its small dimensions, it can be used in various applications and a variety of different media.
Features- Mini Industrial coupling
- Single hand operation for easy and fast connection
- Worldwide used profile
- Higher flow rates and lower connection/disconnection force compared to competitors
Specifications
Brand
Applications
- Pneumatic & Fluid Handling
Diameter Nominal (DN)
- 2,7
End Fitting Type
- Various
Flow Rate (gpm)
- 130, 165 L/min
- 34 to 44 gal/min
Flow Rate (Lpm)
- 130, 165
Interchange Type
- Rectus Profile
Length (mm)
- 17 up to 52,5
Material
- Stainless Steel
- Brass
Maximum Working Pressure (bar)
- 35 bar
Maximum Working Pressure (psi)
- 500 psi
Maximum Working Temperature (°C)
- 100°, 200° C
Maximum Working Temperature (°F)
- 212°, 392° F
Media
- Water
- Pneumatic Media
- Gases
- Steam
- Chemical Fluids
Minimum Working Temperature (°C)
- -20° C
- -15°
Outside Diameter (mm)
- 7 up to 10 mm
Seal Material
- NBR, FKM
Valve Style
- Poppet
Valving
- Yes, No
- NIBP
