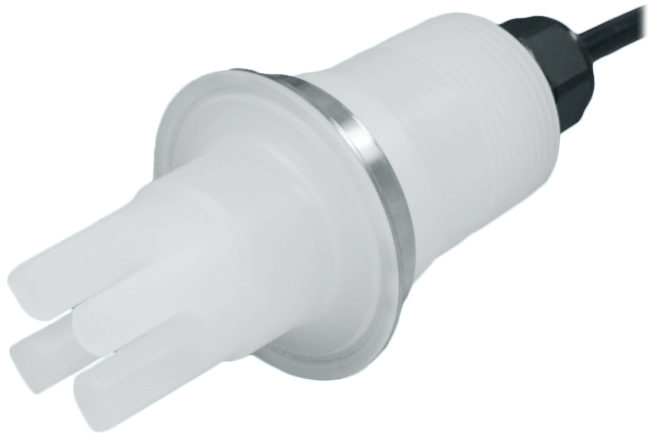

S10 Suspended Solid Sensor
Brand: Quadbeam Technologies
Get better control of your suspended solids, control your losses, control product change, control concentration, control dosing - accurately and repeatedly
Features- Four beam self compensating sensor, virtually eliminates drift due to contamination or electronic aging
- One piece body, no lenses to leak, glass free
- Range of sensors to best suit application
- Both Immersion and Hygienic configurations
- Simple user interface
- Accurate, repeatable & reliable
Specifications
Brand
Accuracy
- ± 2 % of Reading
Applications
- Centrifugal, Gravity or Filter Separation Processes.
- Dairy & Food & Beverage for Monitoring High Levels of Suspended Solids
- Waste, Mining & Industrial Applications Include Return & Waste Activated Sludge Measurement.
Cable Length
- 164 feet (50 metres)
- 32 feet (10 metres)
Cable Material
- Polyurethane
Electrical Connectors
- Amphenol Plug
Enclosure, Body Material
- Polypropylene
Measuring Range
- Hygienic Sensor: 0 to 40 %
- Immersion Sensor: 0 to 25 G/l
- Immersion Sensor: 0 to 4 % Coal Fines
Operating Pressure
- Cleaner - psi: 145 (kPa: 1,000, bar: 10)
Operating Temperature
- 0° to 85° C (32° to 185° F)
Repeatability
- ± 1 % of Reading
Wavelength
- 880 Nm, Standard
