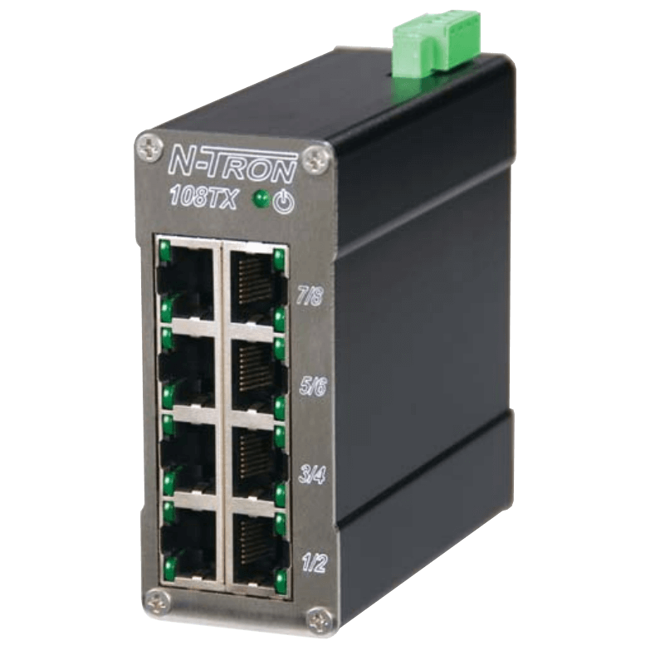

108TX Industrial Ethernet Switch
Brand: Red Lion ControlsThe N-TRON 108TX is an unmanaged eight port Industrial Ethernet switch.
It is housed in a hardened, metal, DIN-Rail enclosure, and is designed for use in mission critical data acquisition, control, and Ethernet I/O applications.
Features- Compact, space saving package
- Full IEEE 802.3 compliance
- American Bureau of Shipping (ABS) type approval
- EN50155 for railway applications
- Eight 10/100BaseTX RJ-45 Ports
- Unmanaged operation
- Extended Environmental Specifications
- -40º to 70º C (-40° to 158° F) operating temperature
- >2M Hours MTBF
- Supports full/half duplex operation
- Up to 1.6Gb/s maximum throughput
- MDIX auto sensing cable
- Auto sensing speed and flow control
- Full wire speed communications
- Store and forward technology
- Redundant power inputs (10-30 Vdc)
- ESD protection diodes on all ports
- Surge protection diodes on power inputs
- LED link/activity status indication
- Hardened metal DIN-Rail Enclosure
1 - 4 of 4 Part Numbers
100-MDR-2
- Product - Metal Din Rail Option
108TX
- Product - Eight 10/100BaseTX Ports, 10-30 Vdc
- Metal DIN Rail - Without Metal DIN Rail
108TX 100-MDR-2
- Product - Eight 10/100BaseTX Ports, 10-30 Vdc
- Metal DIN Rail - Metal DIN Rail
NTPS-24-1.3
- Product - DIN-Rail Power Supply 24 V at 1.3 A
1 - 4 of 4 Part Numbers
Specifications
Brand
Approvals & Certifications
- ABS
- CE: EN 61000-6-2,4, EN 61000-4-2, 3, 4, 5, 6, EN 55011
- DNV GL
- FCC Title 47 Part 15 Class A ICES-003 - Class A
- GOST-R
- IEEE 1613
- RoHS
- UL Listed (US & Canada) Per ANSI/ISA-12.12.01-2007, Class I, Div. 2, Grade A, B, C, D, T4A
Approvals & Certifications
- EN 50155
Current
- Inrush: 8.1 A / 0.7 milliseconds at 24 V
Environmental Protection
- NEMA TS1
- NEMA TS2
Humidity
- 10 to 95 % Relative Humidity, Non-Condensing
Input
- 10-30 Vdc
- 250 mA at 24 V
Mounting
- Rail Mounting
Operating Temperature
- -40° to 70° C (-40° to 158° F)
Storage Temperature
- -40° to 85° C (-40° to 185° F)
Supply Voltage
- BTU/hr: 20.5 A at 24 Vdc
Wiring
- Wiring Clearance Front: 2” (5.08 cm)
- Wiring Clearance Top: 1” (2.54 cm)
