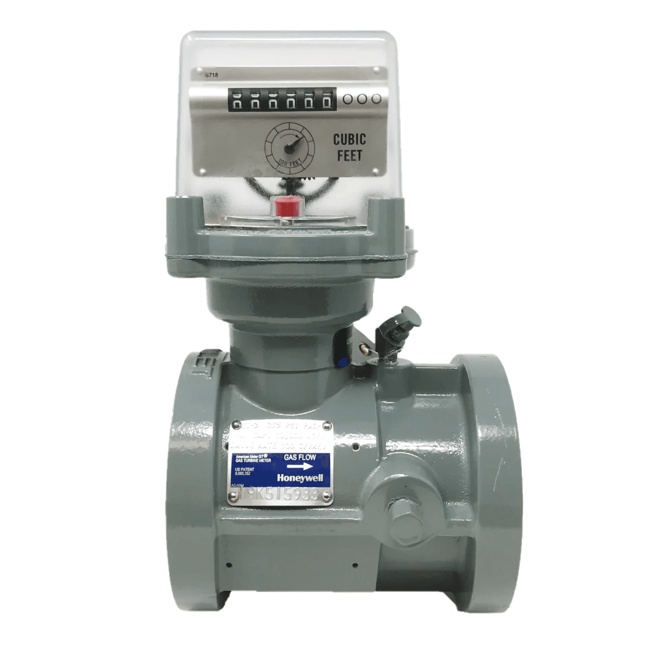

GTS Turbine Meter
Brand: Honeywell Process SolutionsThe turbine meters are designed to accurately measure natural gas, air, nitrogen, carbon dioxide, propane vapor, and other non-corrosive gases for large volume commercial and industrial uses.
Basic turbine meter, pre-machined housings to allow upgrade to AccuTest self-test model, flush-type lubrication system cleans main bearings while meter is in operation, both inlet and outlet Flo-Guides, available in 4", 6" and 8"
Features- Maximum allowable operating pressures (MAOP) – from 175 PSIG up to 1480 PSIG.
- Body Materials – Cast aluminum, cast steel, or steel depending on pressure rating.
- English or metric units of measurement.
- Common gear train for 3", 4", 6" and 8" meter sizes thereby reducing spare parts inventory.
- Interchangeable pre-calibrated measurement cartridges allow for easy maintenance.
- High efficiency inlet Flo-Guide conditioners minimize the effects of flow disturbances in short coupled installations.
- GTX model utilizes permanently lubricated bearings for maintenance free use.
- AccuTest model incorporates two independent measuring cartridges in one housing, both calibrated to allow proving the meter while in service with ATP software.
