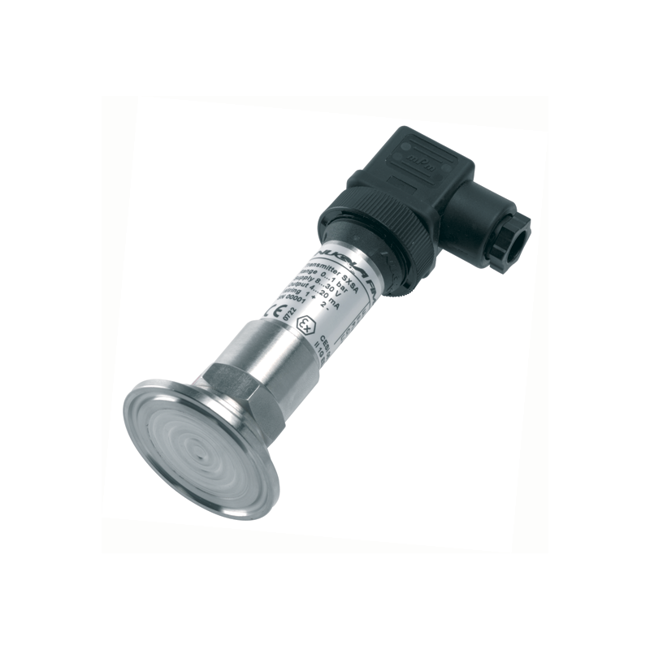

SX SA Intrinsically Safe Pressure Transmitter for Food Industry & Sanitary Application, ATEX Version
Brand: Nuova Fima
Features
- Construction and finishing: As per 74-06 SSI
- Zones: 0, 1, 2, 20, 21, 22
- Wetted parts: AISI 316L st.st
- EMC emission and immunity: As per EN 61326
- Calibration: Adjustable
- Full traceability
Specifications
Brand
Accuracy
- ≤ ± 0.5 % of the Range
Case
- In AISI 316L, Vented up to 16 bar
Diaphragm & Process Connection
- In AISI 316L
Emission & Immunity
- According to EN 61326, (Group 1 - Class B, Industrial Applications)
Ignition Protection
- Ex ia as Per EN 60079-0, EN 60079-11, EN 60079-26, Atmosphere Typical GD: Category 1, Marking II 1 GD Ex ia IIC Ex ia IIIC (Cod. 1 GD)
- Ex ia as Per EN 60079-0, EN 60079-11, EN 60079-26, Atmosphere Typical GD: Category 1/2, Marking II 1/2 GD Ex ia IIC Ex ia IIIC (Cod. 2 GD)
IP Protection Rating
- IP65 According to IEC 60529
Long Term Drift
- ≤ 0.2 % of Span
Measuring Range
- 0 to 0.6 / 0 to 16 bar, Absolute
- 0 to 0.6 / 0 to 40 bar, Relative
- -1 to 0 / -1 to +24 bar, Relative
Non-Linearity (BFSL)
- ≤ ± 0.25 % of the Range, According to IEC 61298-2
Non-Repeatability
- ≤ 0.15 % of the Range, According to IEC 61298-2
Output Signal
- 4-20 mA (Cod. 1)
Response Time
- < 150 milliseconds (Switching On)
- < 4 milliseconds (Measuring)
Seal Fill
- Oil for Food Service (FDA)
Sensor
- Ceramic in Al₂O₃ or Piezoresistive
Shock Resistance
- 40 G (6 Ms, According to IEC 60068-2-27)
Stocking Temperature
- -10° to +85° C
Temperature Class
- T4 (T135° C)Ta ≤ 100° C (Cod. T4B)
- T5 (T100° C)Ta ≤ 80° C (Cod. T5B)
- T6 (T85° C)Ta ≤ 60° C (Cod. T6B)
Vibration Resistance
- 20 G (10 to 2000 Hz, According to IEC 60068-2-6)
Zero & Span Adjustement
- ± 10 % of Span Typical
