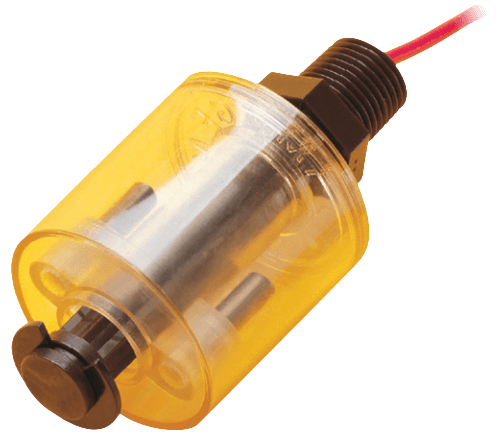

LS-3 Series Single-Point Level Switch
Brand: Gems Sensors, Inc
The durable construction of these reed switch designs ensures long, trouble-free service. Because the effects of shock, wear and vibration are minimized, these hermetically sealed level switches provide precise repeatability with no more than 1% deviation.
The level switch actuation points remain constant over the life of the unit. Ideal for shallow tanks or restricted spaces, or for any low-cost, high volume use.
LS-3 Series are available in FDA/NSF compliant materials upon request, consult Gems™ for details.
LS-3 MICRO: The newest addition to the LS-3 series family is the LS-3 Micro. It is the smallest LS-3 series switch available.
These units are ideal for potable water, medical devices and other compact appliances such as printers. The LS-3 Micro float enables use in lighter-than-water fluids.
These switches are also made with FDA compliant material, which expands the scope in which these floats can be used.
Specifications
Brand
Applications
- Medical Equipment
- Oils & Fuels
- Printers
Approvals & Certifications
- CE
- CSA (For LS-3 Series): File No. 30200
- FDA (Only for Polysulfone & PVDF)
- RoHS Compliance with EU-Directive 2011/65/EC
- UL (C,US): File No. E45168
BSP Connection
- 1/8”-28 BSP Male
- G 1/8”-28 Male
Electrical Connectors
- Electrical Termination: Cable
- Teflon Jacketed Lead Wires
Electrical Contacts
- Normally Closed or Normally Open
Electrical Rating
- 120-240 Vac at 20 VA for LS-3 Series
- 140 Vac / 200 Vdc at 2 VA for LS-3 Micro
Enclosure / Body Material
- Ideal for Broad Chemical Compatibility: Polypropylene (Hallow & Solid) NSF Standard 169 (Kynar Float Retaining Clip)
- Ideal for Corrosion-Resistant & Ultra-Pure Application: PVDF
- Ideal for Oils & Fuels: Buna
- Ideal for Water-based Liquids, with Limited use in Oils & Chemicals: Polysulfone
Fluid Specific Gravity
- Minimum 0.45 to 0.95
Maximum System Pressure
- psi: 150 (kPa: 1,000, bar: 10) at 20° C (68° F) for Nylon, Polypropylene
- psi: 50 (kPa: 300, bar: 3) at 21° C (70° F)
Media
- Oil
- Water
Metric Connection
- M12 x 1.75 Male
NPT Connection
- 1/8” NPT Male
Operating Temperature - Sensor
- Oil: -40° to 121° C (-40° to 250° F)
- Water: -40° to 80° C (-40° to 176° F)
Sensor / Probe Diameter
- Float Diameter: 1” (25 mm) for LS-3 Series
Sensor / Probe Style
- Float
Stem Material
- Nylon
- Polypropylene NSF Standard 169 (Kynar Float Retaining Clip)
- Polysulfone
- PVDF
Switch Type
- SPST
UNF/UNC Connection
- 3/8”-16 Male UNC
