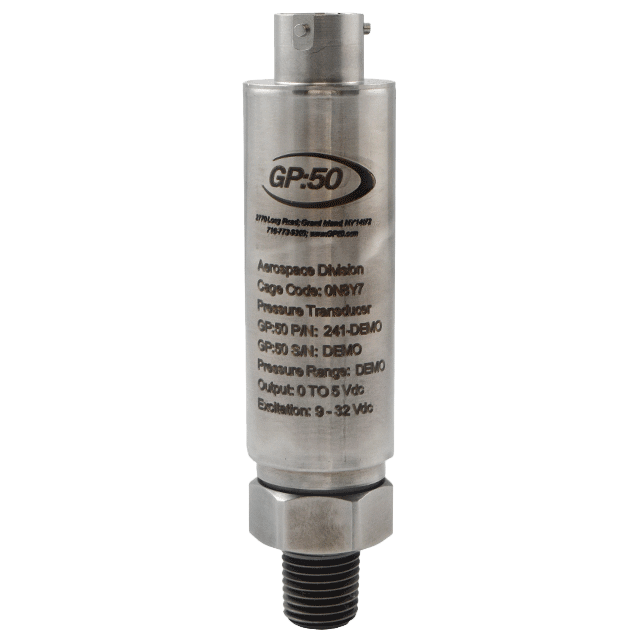

Model 241 High Accuracy Pressure Transducer
Brand: GP:50 New York Ltd
Features
- Output Signal: 0 to 5 Vdc
- Supply Voltage: 8 to 32 Vdc
- Pressure Range: 0 to 30" WC (0 to 15,000 psi, 0 to 1034, 0 to 103,421 kPa
- Burst Pressure: 5 times FSO or 22,500 psi maximum
- Proof Pressure: 2 times FSO or 22,500 psi maximum
- Electrical Connections: PTIH-10-6P
- Process Connection: 1/4" Male NPT
- Temperature Range:
- Operating: -40° to 85°C (-40° to 185°F)
- Compensated: 0° to 82°C (32° to 180°F)
- Storage: -40° to 121°C (-40° to 250°F)
- Effect on Zero/Span: ±0.5% Full Scale Output at 100°F
- Static Accuracy: ±0.10% Full Scale Output
- Materials of Construction:
- Housing: 300 Series Stainless Steel
- Wetted Parts: 316 Stainless Steel
Specifications
Brand
Accuracy
- ± 0.05 % of Full Scale Output
- ± 0.10 % of Full Scale Output
Burst Pressure
- 5 times Full Scale Output or 22,500 psi (1,551 bar, 155,132 kPa), whichever is less
Circuit Protection
- Reverse Polarity
Compensated Temperature
- 0° to 82° C (32° to 180° F)
Electrical Connectors
- Bendix PTIH-10-6P
Enclosure, Body Material
- 300 Stainless Steel
Load Impedance
- 100,000 ohms Min.
NPT Connection
- 1/4” NPT Male
Operating Temperature
- -40° to 85° C (-40° to 185° F)
Output
- 0-5 Vdc
Pressure Range
- bar: 0 to 1,034
- Inches WC: 0 to 30
- kPa: 0 to 103,421
- psi: 0 to 15,000
Pressure Type
- Absolute
- Gauge
- Sealed Gauge
- Vacuum
Proof Pressure
- 2 times Full Scale Output or 22,500 psi (1,551 bar, 155,132 kPa) whichever is less
Response Time
- 1 millisecond
Span & Zero Effect
- ± 0.5 % of Full Scale Output at 38° C (100° F)
Storage Temperature
- -40° to 121° C (-40° to 250° F)
Supply Voltage
- 8-32 Vdc
Wetted Materials
- 316 Stainless Steel
- 630 Stainless Steel
