Bearing Assemblies - LVC Angular Two Row Series

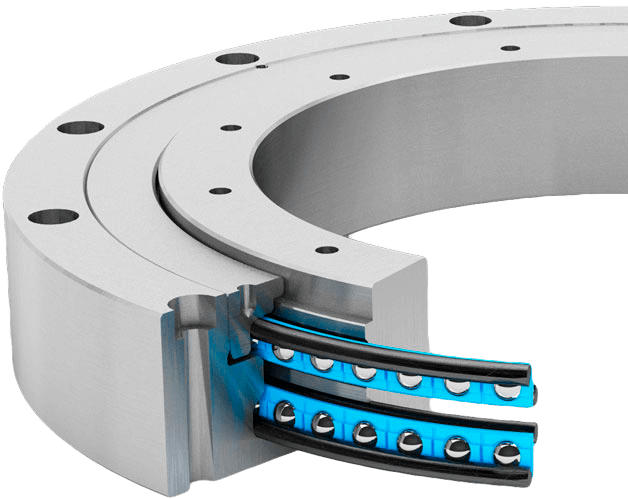

Brand: Franke GmbHFranke bearing assemblies type LVC are bearing assemblies made of steel, designed as double row angular contact ball bearings with integrated bearing elements.
Franke LVC are suitable for highest circumferential speeds. They convince by very high dynamics and a very low rotational resistance.
The double row angular contact ball bearings in a 4-point arrangement are preloaded. They are insensitive to shocks and vibrations.
The low rotational resistance and the minimal breakaway torque reduce the required drive power. Due to the low coefficients of friction, Type LVC bearing assemblies operate almost maintenance-free and achieve a long service life.
FeaturesBearing type
- Bearing assembly in steel design
- Integrated double-row angular ball bearing
Characteristics
- Ready to install, wide selection range
- Preloaded free from clearance
- For high speed and acceleration
Diameter range
- Variable from 100 - 1800 mm
Specifications
Brand
Material
- Inner/Outer Ring C45N
- Ball Race Rings: 54SiCr6
- Rolling Elements: 100Cr6
- Cage: PA12
Temperature in Use
- -20° to +80° C, Briefly up to +100° C
Circumferential Speed
- Maximum 20 m/s
Screw Connection
- See Technical Information
Lubricant Grease
- Shell Gadus S3 V220C2
Re - Lubrication
- Using Grease Nipples According to DIN 3405
Lubrication Schedule
- See Technical Information
