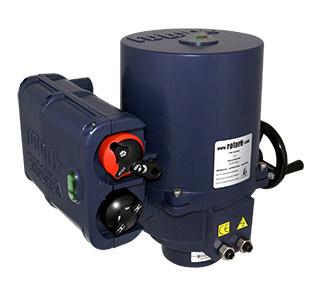

Rotork ROMpak Range - Quarter-Turn Direct Drive Electric Actuator
Brand: Rotork PLCThe ROM range of actuators can be enhanced with the addition of a self-contained control package to create a ROMpak actuator.
This adds local controls, status indication relays, isolated control circuits and support for Rotork control options such as Folomatic, Pakscan™ and other bus systems.
Torque range 8 to 800 Nm (6 to 590 lbf.ft).
Features- Small, compact & lightweight
- Manual override
- Externally adjustable mechanical stops (ROM and ROMpak 2, 3, 4, 5, 6 & 7 actuators only)
- Local control unit (local/remote, on/off)
- Status relays
- Phase rotation correction
- IP68 (10 m / 100 hours)
- 12/24 VDC, 110/220 VAC 1-phase and 220/380/440 VAC 3-phase, 50 Hz and 60 Hz
- Position indication via local mechanical indicator and LEDs
- -30° to 70º C (-22° to 158º F) operation (12/24 VDC units are -30° to 65º C (-22° to 149º F)
Specifications
Brand
Humidity
- 30 to 95 %
Power Supply
- 12/24 Vdc, 110/220 Vac 1-Phase
- 220/380/440 Vac 3-Phase, 50 Hz & 60 Hz
Approvals & Certifications
- CE
- CSA
Communication
- FOUNDATION Fieldbus
- Modbus
- Pakscan
- PROFIBUS
Environmental Protection
- IP66
- IP68
- NEMA 4, NEMA 4X
Electric Connection
- Conduit M20 x X1.5p
Enclosure, Body Material
- Aluminum Alloy / Plastic
Features
- Manual Override
Ambient Temperature Range
- -22° to 158° F (-30° to 70° C)
Approvals & Certifications
- ISO 9001, CE, CSA, BV
Product Finish
- Dry Powder-Coated & Wet Spray
