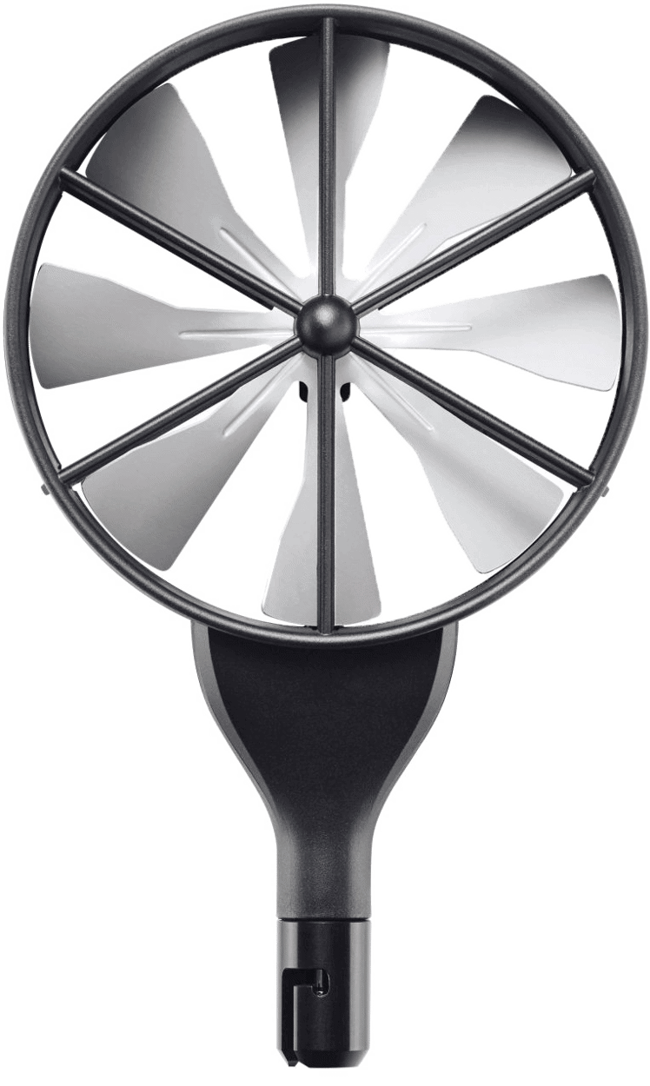

High-Precision 100 mm Vane Probe Head including Temperature Sensor
Brand: TestoMore applications, less equipment: if you already own one of our probes with a universal handle, you can easily expand your portfolio of probes with the high-precision 100 mm vane probe head.
Combine the probe head with the handle adapter for air velocity probes and simply plug onto the handle with cable or Bluetooth.
For convenient measurements at ceiling outlets, we recommend the extendable telescope for air velocity probes including 90° angle.
Note: Please note that you need the handle adapter (order number 0554 2160) to use this probe head in conjunction with the handles.
Features- Intuitive: parallel determination of air velocity, volume flow and air temperature
- Precise: detects the smallest air velocities from as little as +0.1 m/s and is therefore ideal for laminar flow measurements in cleanrooms
- Convenient: probe head is easy to attach to the universal Bluetooth or cable handle or to the extendable telescope (all available to order separately)
- Intelligent calibration concept: only send in the probe head for calibration
Specifications
Brand
Delivery Scope
- High-Precision 100 mm Vane Probe Head including Temperature Sensor, Bracket for Testovent Measurement Funnel and Calibration Protocol
Temperature - NTC
- Measuring Range: 0° to +60° C
- Accuracy: ± 0.5° C
- Resolution: 0.1° C
Velocity / Volume Flow
- Measuring Range: 19.7 to 2953 fpm / +0.1 to +15 m/s
- Accuracy: ± (19.7 fpm + 1.5 % of mv) / ± (0.1 m/s + 1.5 % of mv)
- Resolution: 0.01 m/s
Storage Temperature
- -4° to 158° F / -20° to +70° C
Weight
- 4.2 oz. / 120 g
Dimensions
- 7.1 x 4.1 x 1.8 in. / 180 x 105 x 46 mm
Operating Temperature
- -4° to 158° F / -20° to +70° C
Probe Head Diameter
- 3.937 in. / 100 mm
Product Colour
- Black
