Oil Pressure Transducer

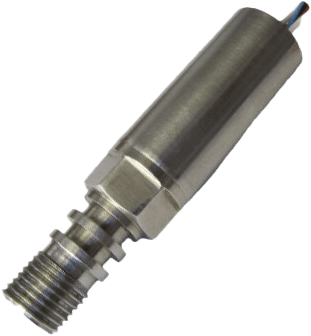

Brand: Xi'an UTOP Measurement Instrument Co, LtdUPC9 Sputtered Thin-film Oil Pressure Transducer is manufactured based on sputtering technics. The pressure medium can act on 17-4PH stainless steel diaphragm directly.
The transducer's "micro" level resistance film is made by means of molecular bonding, then to be made to the needed Wheatstone bridge by microelectronics technology, and to form a metal- type sensing elements without using any adhesives.
Therefore the transducer has no any moving parts, also do not need sealed chamber and oil-filled cavity. UPC9 Oil Pressure Transducer is featured with good long-term stability for working is harsh environments.
UPC9 Oil Pressure Transducer is a high-performance product and designed for oil well logging, well testing and pressure gauge application especially.
It can work stably under high temperature, and have good ability on anti-vibration, impact resistance, moisture-proof.
Features- Good long-term stability under high temperature
- High accuracy, small temperature drift
- Using sputtering technics to make pressure sensing element, the max. working temperature reaches 180°C
- Long service lift, pressure cycle reaches more than one million times
- Anti-vibration, impact resistance, moisture-proof
Specifications
Pressure Medium
- Gas or Liquids Compatible to 17-4 PH Stainless Steel
Pressure Ranges
- 0 ~ 5...2200 bar
Overload Pressure
- 200 % Full Scale
Ultimate Overload Pressure
- 1000 % Full Scale
Output Signal
- 1 mV/V ~ 4 mV/V (determined by Pressure Range)
Accuracy
- 0.25 % Full Scale (Standard), 0.5 % Full Scale
Zero Offset
- < 0.5 mV
Long-Term Stability
- < 0.1 % Full Scale/year
Excitation
- 3 ~ 20 Vdc
Operating Temperature Range
- -55 ~ +180° C
Storage Temperature Range
- -55 ~ +180° C
Temperature Coefficient of Zero
- 0.005 % Full Scale/°C
Temperature Coefficient of Span
- 0.005 % Full Scale/°C
Input Resistance
- 3 ~ 4 kΩ
Output Resistance
- 2.8 ~ 3.8 kΩ
Electrical Connection
- 4-color High Temperature Wire or PG7 Connector
Process Connection
- M10 x 1 or others
Material of Wetted Part
- 316
Impact
- 20G, 11 msec, 1/2 Sine
Shake
- 10G Peak, 20 ~ 2400 Hz
Protection
- IP67
- UPC9 Oil Pressure Transducer has been widely used for Pressure Measurement in Harsh Environments such as Oil Well Logging, Well Testing, Digital Pressure Gauge, Internal Combustion Engines, Compressors, High Pressure Testing Machine etc.
