TP-AC Range Data and Signal Surge Protection
Brand: MTL InstrumentsThe TP-AC range of surge protection devices uniquely provides a level of protection for AC powered, field-mounted transmitters that is far in excess of the optional transient protection facilities available from the transmitter manufacturers - and achieved without any additional wiring modifications or costly additions.
The TP protection network consists of high power, solid state electronics and a gas-filled discharge tube - GDT capable of diverting 20kA impulses.

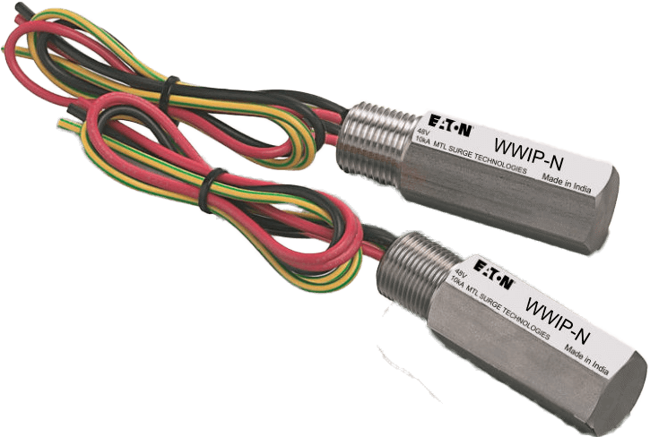

The whole unit is encased in ANSI 316 stainless steel housing, threaded for attachment in conduit entries used on process transmitters.
Versions are available with ½” NPT and 20mm threaded entries.
Features- Corrosion Resistant
- Protects AC Power and Signal Line
- 120V and 240V
- Models for Foundation Fieldbus™ 4-20mA and Profibus DP
- Parallel Connection Avoids Resistance in Loop
- Easy and Direct Mounting - Screws into Spare Conduit Entry
- FM Approved
- 10 Year Product Warranty
Specifications
Brand
Maximum Surge Current
- 20 kA peak current (8/20 μs waveform)
Leakage Current
- Less than 10 μA at Max. working voltage
Resistance
- No resistance introduced into loop
Ambient Temperature Limits
- -40° to +85° C (-40° to +185° F) (working)
- -40° to +85° C -(40° to +185° F) (storage)
Humidity
- 5 % to 95 % RH, Non-Condensing
Casing
- ANSI 316 stainless steel hexagonal bar stock, male thread
Ingress Protection
- IP66 (NEMA 4X)
Threads
- 1/2" NPT, 20 mm ISO
EMC Compliance
- To Generic Immunity Standards EN 61326-1, part 2 for industrial environments
Weight
- 204 g (7.2 oz.)
- Equipment is Suitable for Use in Hazardous Area Applications
