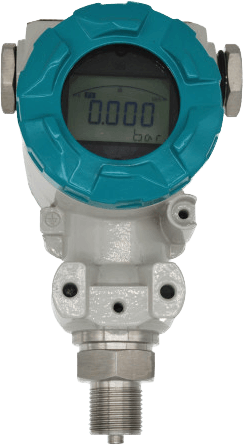

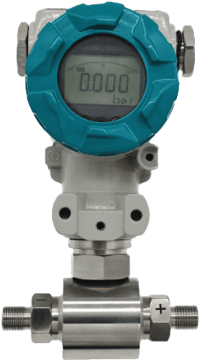

Pressure Transmitter With LCD Indicator

Brand: Xi'an UTOP Measurement Instrument Co, Ltd
Add Product to My Catalog

UPB9 Pressure Transmitter with LCD Indicator adopts high performance and high stability UPX19 (OEM) pressure sensor as measuring element.

The sensor signal is converted into standard 4-20mA signal output by special signal processing IC.

After long-term aging and stability testing, the product performance is stable and reliable. UPB9 can realize pressure display, zero adjustment and range ability on site.

UPB9 Pressure Transmitter with LCD Indicator installation interface connection (process connection), can not only be made according to the requirements of users, but also be provided compatible with other brands of transmitters.

This series of products are widely used in industrial process control, petroleum, chemical, metallurgy and other industries for pressure measurement and control.
Features
  • 4-digit LED display or 5-digit LCD display
  • High performance-to-price ratio, high accuracy, long-term stability
  • Electric shell is Cast-Aluminum material, IP65 protection
  • Reversed protection, current limiting protection
  • Anti-corrosive, the anti-attrition, the anti-impact
  • This pressure transmitter with LCD indicator has flush membrane and the tantalum diaphragm option

View_Details

Specifications

Brand

Pressure Medium

  • Gas or Liquid Compatible to Stainless Steel

Pressure Ranges

  • -1...0 ~ 0.1...1000 bar

Pressure Type

  • Gauge
  • Absolute
  • Sealed Gauge
  • Differential

Overload Pressure

  • 150 % Full Scale

Output Signal

  • 4 ~ 20 mA, 0 ~ 5 V, 0 ~ 10 V, 1 ~ 5 V

Accuracy

  • 0.1 % FS, 0.25 % FS, 0.5 % FS

Load Resistance

  • RL = (U-12 V)/0.02 A (4~20 mA Current Output), U-Loop Voltage (V)

Long-Term Stability

  • < 0.2 % Full Scale/year

Supply Voltage

  • 12 ~ 36 Vdc

Compensated Temperature Range

  • -10° ~ 70° C

Operating Temperature Range

  • -30° to 100° C

Temperature Coefficient of Zero

  • 0.2 % Full Scale/10° C

Temperature Coefficient of Span

  • 0.2 % Full Scale/10° C

Rangeability

  • 15:1

Insulation Resistance

  • 100 MΩ @ 50 Vdc

Process Connection

  • G1/2” or others

Electrical Connection

  • M20 x 1.5 (Female Thread)

Material of Wetted Part

  • 1Cr18Ni9Ti

Material of Pressure Membrane

  • 316L

Material of Housing

  • Cast Aluminum

Sealing

  • Fluoro-Rubber Sealing Ring
