Polar Energy

Brand: Elcontrol Energy Net S.R.L.
Add Product to My Catalog

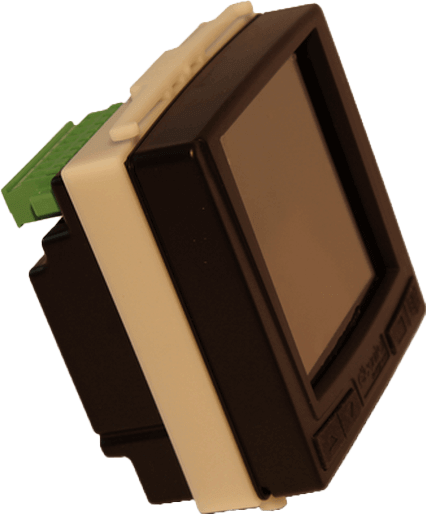

Polar Energy (the successor of the Elcontrol VIP 396 energy analyzer) is a multifunctional panel (96 x 96 mm) mounted tool, ideal for remote measurement, display and remote monitoring of electrical quantities.

It features a 128×128 graphic display of great visibility and comfortable frontal buttons for direct consultation and setup.

It has a wide range of electrical measurements.

Compared to the predecessor VIP396, it adds many functionalities that make Polar Energy a modern and user-friendly tool for the user such as the introduction of cyclic connection verification to make installation easy and secure.

It can be used on single-phase, two-phase, three-phase low and medium voltage networks.

Advanced features and included analysis software make it an ideal tool for the most demanding professional needs.
Features
  • Standard measures also according to IEC 61000-4-30 of V, I, P, Q, A, F, PF, THD%, instantaneous values / min / max / avg, absorbed and products, energy meters (kWh, KVA , kVAr) absorbed and generated;
  • Graphical display of TREND (trends over time) of 6 selectable sizes
  • Automatic connection test to determine if the connections of the voltages and currents are correct
  • Customization of the user display, which can independently choose which values to keep under control
  • Possible to set alarms
  • 485 connectivity
  • Digital input

Specifications

Brand

Internal Dimensions

  • 96 x 96 x 58 mm or 96 x 96 x 96 mm (with option)

Overall Dimensions

  • 96 x 105 x 40 mm or 96 x 105 x 77 mm (with option)

Safety

  • 600 V CAT III

IP Protection

  • IP65 front side, IP30 inside panel

Weight

  • 320 g + 35 g each option

Type

  • LCD Dot Matrix with White Backlight

Languages

  • English
  • Spanish
  • Italian
  • German
  • French

Electrical Connections

  • Screw Terminals

Communication

  • 485 (Option)

Temperature Range

  • From -10° to +55° C

Umidity

  • Maximum 95 %

AC Power Supply

  • 90-230 V ± 10 % 50/60 Hz 8 VA

DC Power Supply

  • 90-300 V ± 10 % 8W, 12-24 V ± 10 % (option), 48-60 V ± 10 % (option)

Consumption

  • 5 VA

Wires Section

  • 2.5 mm
