PowerGrip® Timing Belts
Brand: Gates CorporationToday’s highly sophisticated car engines operate at higher temperatures, higher speeds, and produce more power requiring highly engineered materials to meet high mileage replacement intervals as demanded by OEM’s.
Gates engineers automotive timing belts in partnership with dozens of top automotive OEM’s around the world, and bring the same quality, durability, and OE fit to our aftermarket solutions.
Gates timing belts provide quiet, reliable, low maintenance performance, with a superior resistance to contamination, heat, and wear.
So whether you’re looking to stock up your automotive garage with some of the best automotive belts on the market, or you’re looking to repair commercial and fleet vehicles for your business, Gates has the automotive aftermarket solutions that power your progress.

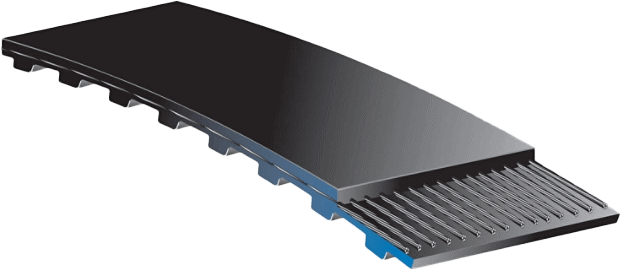

Gates® classical synchronous PowerGrip® Timing belts offer a maintenance-free, economical, and OE quality solution for your conventional timing drives such as chains and gears.
Its application range extends from minimum drives (computer printers) to heavy-duty machinery (oil pumps, etc). The trapezoidal tooth profile makes this belt well suited for use in positioning applications.
Features- Manufactured with durable and reinforced rubber compounds (HSN) to provide wide ranging tolerance to temperature extremes
- Eliminates lubrication and re-tensioning to reduce maintenance and labor required on drives
- Precisely formed and accurately spaced elastomeric teeth ensure correct engagement with the pulley grooves
- Fiberglass tensile cord provides high strength, excellent flex life, and high resistance to elongation
- Neoprene body provides protection against grime, grease, oil, moisture, and other contaminants
- Nylon tooth facing provides a durable wear surface for long service life
- Power transmission of up to 150 kW and speeds of up to 10,000 rpm
- Temperature Range: -30°C to +100°C (-22°F to +212°F)
- Wide range of load capacities and speed ratios
- Peripheral speed up to 80 m/s
- Positive slip-proof engagement
- Belts conform to ISO19347:2015
- Constant angular velocity
- Efficiencies up to 99%
- Available in MXL, XL, L, H, XH, XXH pitch
1 - 12 of 1,119 Part Numbers
1000H075
- Pitch - 0.5"
- Pitch Length - 100.00"
- Belt Width - 0.750"
1000H100
- Pitch - 0.5"
- Pitch Length - 100.00"
- Belt Width - 1.000"
1000H150
- Pitch - 0.5"
- Pitch Length - 100.00"
- Belt Width - 1.500"
1000H200
- Pitch - 0.5"
- Pitch Length - 100.00"
- Belt Width - 2.000"
1000H300
- Pitch - 0.5"
- Pitch Length - 100.00"
- Belt Width - 3.000"
1000XXH200
- Pitch - > 0.875"
- Pitch Length - 100.00"
- Belt Width - 2.000"
1000XXH300
- Pitch - > 0.875"
- Pitch Length - 100.00"
- Belt Width - 3.000"
1000XXH400
- Pitch - > 0.875"
- Pitch Length - 100.00"
- Belt Width - 4.000"
1000XXH500
- Pitch - > 0.875"
- Pitch Length - 100.00"
- Belt Width - 5.000"
100MXL012
- Pitch - 0.08"
- Pitch Length - 10.00"
- Belt Width - 0.125"
100MXL019
- Pitch - 0.08"
- Pitch Length - 10.00"
- Belt Width - 0.187"
100MXL025
- Pitch - 0.08"
- Pitch Length - 10.00"
- Belt Width - 0.250"
1 - 12 of 1,119 Part Numbers
Specifications
Brand
Pitch
- 0.08” - 90”
Width
- 0.125” - 5”
Number of Teeth
- 21 - 141
Material
- Chromium
Type
- Timing
