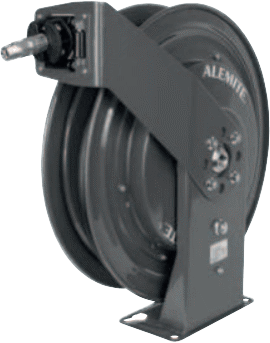

Alemite Compact Hose Reel
Brand: Lincoln Industrial CorpAlemite compact reels provide optimum performance and safety in rough working environments.
Featuring the same mounting pattern as Alemite9s heavy duty and severe duty reels, these models are engineered for use in locations where space is limited.
Alemite compact reels utilize shorter arms and a smaller diameter to provide reel performance in tight spaces.
Features- Saves space; fits in cabinets with 16.5 in. (419 mm) depth.
- Superior performance of swivel and reel ball bearings reduce torque load on power spring for smooth retraction every time.
- Anti-lockout design of ratchet prevents lockup when hose is fully extended, eliminating the need to manually release the pawl at the reel.
- Sealed bearings prevent contamination and minimize maintenance, a critical performance factor in dirty environments.
- Factory lubricated one piece power spring cassette makes installation and maintenance safe and easy.
- Durable, heavy metal arbor design withstands extreme stress and eliminates breakage associated with non-metal and light weight metal arbors.
- Adjustable 5 position guide arm allows hose to release at an optimum position. Narrow design allows for efficient use of available space.
- Includes hose reel, hose, hose stop, union and 24 in. (61 cm) connecting hose.
Specifications
Brand
Color
- Maroon
Maximum Pressure
- 1,500 psi
Bare Reel Model
- 7316-C
Connecting Hose Model
- 317813-2
Delivery Hose Model
- 317813-30
Ball Stop Model
- 337437
Weight
- 53 lbs
