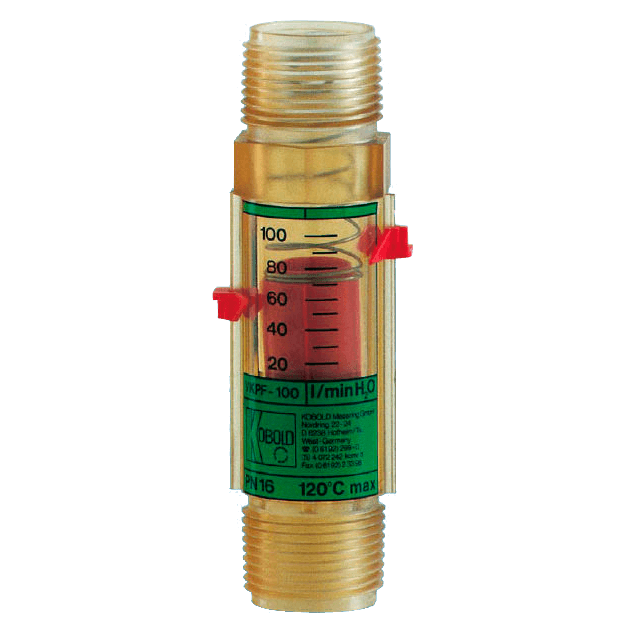

VKP Viscosity Compensated Flowmeter/Switch
Brand: KOBOLD Instruments, IncThe KOBOLD plastic flow meters model VKP operate on a special suspended float principle with cylindrical measuring tube and spring-loaded float with orifice.
The float in model VKP-3 has slots moulded on the outside, which protect the instrument from soiling by depositing dirt particles. The danger of the float jamming is thus considerably reduced and soiled liquids with a particle size up to 400 μm can be measured without difficulty.
In model VKP-2 a sharp-edged orifice in the float renders the instrument less sensitive to changes in viscosity.
Specifications
Brand
Accuracy
- ± 5 % of Full Scale
- ± 7 % of Full Scale
Applications
- Cooling Circuits
- Domestic Electrical
- Infusion Pumps
- Installations
- Lubrication Circuits
- Machine Tools
- Solar Energy Systems
- Welding Machines
BSP Connection
- G 1” Male
- G 1/2” Female
- G 1/2” Male
- G 3/4” Male
Consumption
- Maximum
Electrical Connectors
- DIN 43650
- PVC Glue-In Connection
- Soldering Connection 18, 22 mm (Ms)
Electrical Contacts
- 1 Normally Closed Contact
- 1 Normally Open Contact
- Bistable Reed Contact
Enclosure / Body Material
- Polysulfone
Flow Rate
- 1 to 75 L/minute - Oil
- 2 to 100 L/minute - Water
Input
- Maximum
Materials of Construction
- Polysulfone - Float
Maximum System Pressure
- psi: 232.1 (bar: 16, kPa: 1,600)
NPT Connection
- 1” NPT Male
Seat / Seal Material
- Klingerit Oilit
- NBR
Spring Material
- 301 Stainless Steel (Toothed Ring)
Temperature Range
- 120° C (248° F)
