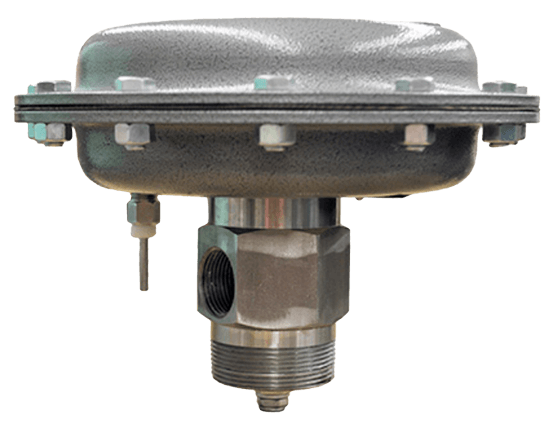

1451 Control Valve
Brand: SOR IncThe SOR 1451 control valves are “freezeless” dump valves and are perfectly suited for fluid control in oil and gas separators and other process vessels.
The valve body design allows the plug and seat to be constantly submerged in the process media, thus giving the valve its “freezeless” characteristic.
Features- NACE option available
- Stainless steel trim
- Compact size
- Product holds a Canadian Registration Number (CRN) in all provinces
Specifications
Brand
Actuator Type
- Reverse Action (Fail Close)
Air Connection Style
- 1/4” NPT Female
Approvals & Certifications
- CRN
Cover Material
- Carbon Steel
Diameter
- Port: 0.38” (9 mm)
Enclosure, Body Material
- Carbon Steel
Flow Rate
- 2 Cv
Materials of Construction
- Liquid Chamber & Actuator Housing: Carbon Steel
NACE & NIST
- NACE
NPT Connection
- 1” NPT Female
- 1” NPT Male
- 1/2” NPT Female
- 2” NPT Male
Operating Pressure
- Maximum
Operating Temperature
- -40° to 93° C (-40° to 200° F)
Plug Material
- 630 Stainless Steel (17-4 PH)
Seat / Seal Material
- Seal: Buna-N
- Seal: Viton
- Seat: 630 Stainless Steel (17-4 PH)
Stem Material
- Valve Stem: 316 Stainless Steel
Style
- Body Style: Freezeless Angle
Supply Pressure - Maximum
- psi: 50 (kPa: 345, bar: 3.5)
Trim Material
- Stainless Steel
