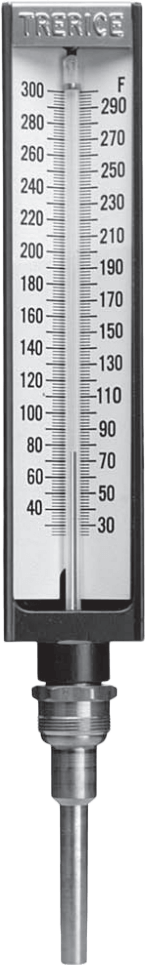

Rigid Stem Series Industrial Thermometer
Brand: Trerice Gauges & ValvesThe Rigid Stem Industrial Thermometer is offered for applications where a non-adjustable case is preferred.
The durable cast aluminum case is available in rigid straight or rigid 90°angle forms. This thermometer features accuracy, responsiveness and durability.
Features- 7", 9", 12" Scale
- ± 1 Scale Division Accuracy
- Cast Aluminum Case
- Rigid Straight or Rigid 90° Angle Case
Specifications
Brand
Models
- Rigid Straight: AX1, BX1, CX1
- Rigid 90° Angle: AX2, BX2, CX2
Scale Size
- 7”, 9” & 12”
Fill Type
- Spirit: Blue Colored, Organic
Case
- Cast Aluminum, Blue Epoxy Finish
Stem
- Aluminum, Brass, 304 Stainless Steel
Connection
- 1-1/4-18 UNEF-2A Coupling Nut
Window
- Ultraviolet Protective Acrylic on ranges to 300° F
- Glass on ranges over 300° F
Tube
- Lens Front, Magnifying Type
Scale
- Aluminum, White Background with Black Graduations and Markings
Top Plate
- ABS
Accuracy
- ± 1 Scale Division
Approximate Shipping Weight
- AX1: 1.2 lbs (0.55 kg)
- BX1: 1.4 lbs (0.64 kg)
- CX1: 1.8 lbs (0.82 kg)
- AX2: 1.0 lbs (0.45 kg)
- BX2: 1.3 lbs (0.59 kg)
- CX2: 1.7 lbs (0.77 kg)
