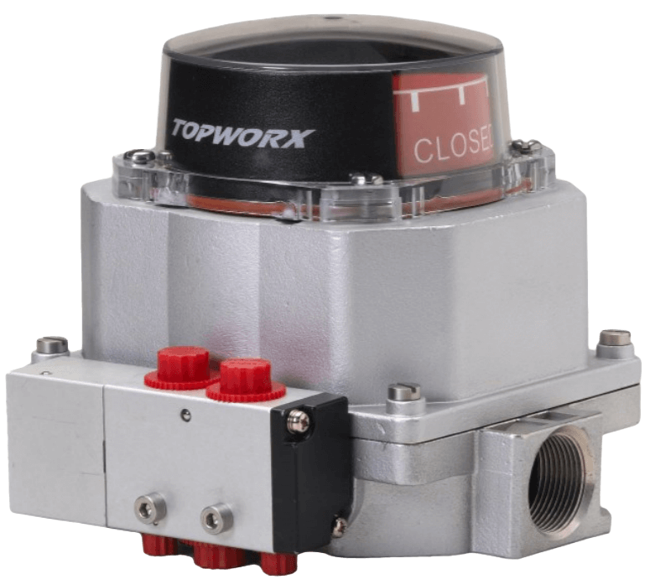

Topworx Discrete Valve Controller, Model TVF/TVH/TVL

Model TVF/TVH/TVL Discrete Valve Controller

Brand: TopWorx
Add Product to My Catalog

Topworx Discrete Valve Controller, Model TVF/TVH/TVL Topworx Discrete Valve Controller, Model TVF/TVH/TVL
The newest addition of valve controllers to the T-Series product line: TVF, TVL, TVH. The TV models are a series of switch boxes that offer a compact, rugged, and dependable solution for discrete valve control and valve position monitoring where weight and real estate are at a premium.

All TV controllers are certified for intrinsically safe (Division 1/Zone 1) and non-incendive applications (Division 2/Zone 2).
Features
  • Global certifications allow for international standardization.
  • Integrated spool valve with single or dual solenoid options for single acting or double acting pneumatic actuators.
  • A wide range of bus/sensor options such as ASi, DeviceNet, Profibus, mechanical, NAMUR, reed and inductive proximity switches.
  • Position switches/sensors are easily set with no tools required, reducing installation time.
  • Tropicalized Aluminum or 316 Stainless Steel housing.
  • Direct NAMUR mount capability eliminates mounting brackets.
  • Low profile but highly visible indicator and small footprint promote significant space savings.
  • Ten-point standard terminal strip (optional twelve-point) and spacious interior layout allows ample room inside the enclosure for wiring.

Specifications

Brand

Actuator Type

  • Double-Acting
  • NAMUR
  • Pneumatic
  • Single-Acting

Approvals & Certifications

  • ATEX
  • cULus
  • EAC
  • IEC Ex
  • INMETRO
  • NEPSI
  • PESO

Communication

  • AS-Interface
  • DeviceNet
  • PROFIBUS

Conduit Connection

  • 1/2” NPT
  • 3/4” NPT
  • M20
  • M25

Enclosure, Body Material

  • 316 Stainless Steel
  • Aluminum

Environmental Protection

  • Dust-Proof
  • Intrinsically Safe
  • IP66
  • IP67
  • IP68
  • NEMA 4
  • NEMA 4X
  • Non-Incendive

Flow Rate

  • 1 Cv

Mounting

  • Bracket
  • Direct Mounting
  • Hole Mount
  • NAMUR Mount
  • Surface Mount

O-Ring Material

  • Silicone

Output

  • 4-20 mA

Override

  • Manual Override

Shaft Material

  • 304 Stainless Steel

Switch Type

  • DPDT
  • Proximity
  • Reed Switch
  • SPDT

Documentation

Data Sheets
