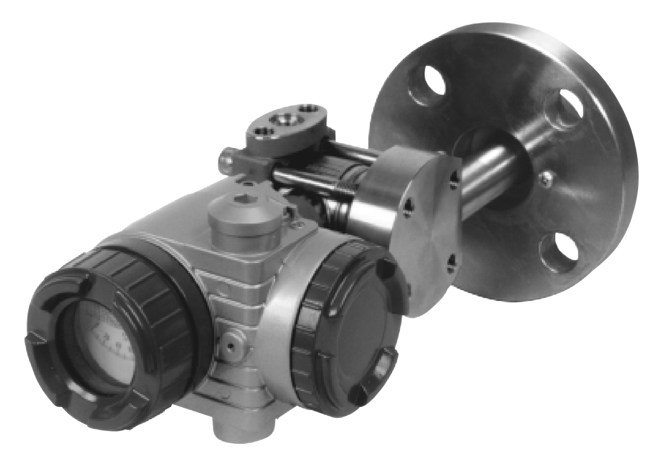

FCX-AII Series FKY-4 Small Flange Level Transmitter
Brand: Tokyo Keiso Co, LtdThe FCX-AII small flange level transmitter accurately measures liquid level and transmits a proportional 4-20 mA signal. The transmitter utilizes a unique micromachined capacitance silicon sensor with state-of-the-art microprocessor technology to provide exceptional performance and functionality.
Specifications
Brand
Approvals & Certifications
- ATEX Flameproof, Intrinsic Safety, Typical N
- FM Flameproof, Intrinsic Safety & Non-Incendive
- IEC
- NAMUR NE43
- TIIS Flameproof, Intrinsic Safety
BSP Connection
- 1/4" BSPT Female
Diaphragm Material
- 316L Stainless Steel
- Hastelloy C
- Monel
- Tantalum
Enclosure, Body Material
- Electronics: 316 Stainless Steel (SCS14 Per JIS G5121)
- Electronics: Low Copper Die Cast Aluminum with Polyester Coating
Environmental Protection
- IP67
- NEMA 6
- NEMA 6P
Fill Material
- Fluorinated Fluid
- Silicone Oil
Flange Material
- Mounting Flange: 304 Stainless Steel
- Mounting Flange: Carbon Steel
Flange Size - 1-1/2” (DN 40)
- 1-1/2" (DN 40) - 150#
- 1-1/2" (DN 40) - 300#
- 1-1/2" (DN 40) - JIS 10K
- 1-1/2" (DN 40) - JIS 20K
- 1-1/2" (DN 40) - JIS 30K
Flange Size - 2” (DN 50)
- 2" (DN 50) - 150#
- 2" (DN 50) - 300#
- 2" (DN 50) - JIS 10K
- 2" (DN 50) - JIS 20K
- 2" (DN 50) - JIS 30K
Metric Connection
- M10
- M12
NPT Connection
- 1/4"-18 NPT Female
O-Ring Material
- Sensor O-Ring: Viton
Output
- 4-20 mA DC
Pressure Range
- kPa: 3 to 500
- mbar: 30 to 5,000
- psi: 0.44 to 72.52
UNF/UNC Connection
- 7/16"-20 UNF
Wetted Materials
- 316 Stainless Steel
- Flange Face: 316L Stainless Steel
- Flange Face: Hastelloy C
- Flange Face: Monel
- Flange Face: Tantalum
