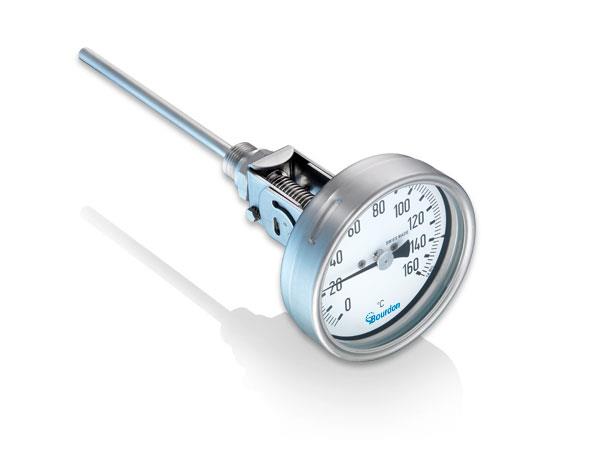

TBHI100 Bi-Metal Thermometer

Brand: Bourdon

Features
  • For corrosive gasses and liquids
  • Reinforced version for harsh conditions
  • Class 1 and 2 according to EN 13190
  • Wetted parts: Stainless steel
  • Option: Case material 1.4404 (316L) for aggressive atmosphere
  • Option: filling fluid in the case to avoid moisture and for applications with vibrations

Specifications

Brand

Accuracy According to EN 13190

  • Above 250° C: Class 2
  • Up to 250° C: Class 1

Approvals & Certifications

Bezel Ring Material

  • Stainless Steel 1.4301, AISI 304

Case Material

  • Stainless Steel 1.4301, AISI 304

Dial

  • White, Aluminum

Immersion Tube Material

  • Stainless Steel 1.4571, AISI 316Ti

IP Protection Rating

  • IP68

Minimum Immersion Length for Immersion Tube 6 mm

  • L2 ≥ 65 mm

Minimum Immersion Length for Immersion Tube 8 mm

  • L2 ≥ 50 mm

Nominal Size

  • 100 mm

Pointer

  • Adjustable
  • Black, Aluminum

Temperature Limitation > 400° C

  • 100 % of Full Scale

Temperature Limitation ≤ 400° C

  • 135 % of Full Scale

Temperature Range

  • -100° to +1100° F
  • -70° to +600° C

Thermometer

  • 450 G

Vibrations

  • 0.00015 G2/Hz (500 Hz)
  • 0.015 G2/Hz (10 Hz)
  • 0.015 G2/Hz (40 Hz)
  • 0.15 mm (10 to 58 Hz)
  • 2 G (58 Hz to 150 Hz)
  • IEC 60068-2-6
  • MIL-STD-810E, Meth. 514.4

Window Gasket

  • Elastomer (Silicone)

Window Material

  • Instrument Glass

  • Oil & Gas / Chemical
  • Water & Waste water
  • Energy
