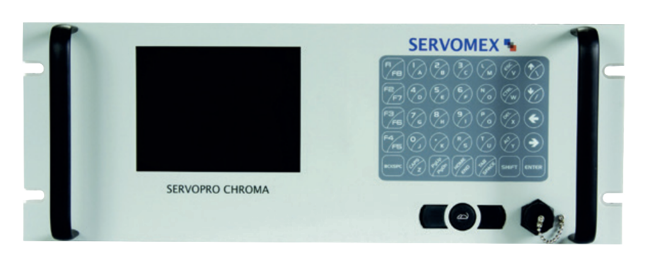

SERVOPRO Chroma Trace Gas Analyzer
Brand: SERVOMEXThe Chroma trace analyzer is one of the most versatile gas monitoring solutions on the market. Utilizing a unique, non depleting plasma emission detector, the Chroma is a mainframe customized to your application.
Offering multi-component trace measurement at ppb, ppm or % level, the Chroma can monitor H2, Ne, O2, N2, Ar, CH4, CO, CO2 and NMHC impurities in H2, O2, N2, Ar and He.
Optimized via a sophisticated and flexible operational software that offers access to all device functions via a PC, the Chroma is configurable for a wide range of complex applications including medical gas purity, air separation, argon recovery, hydrogen purification and semiconductor wafer manufacture.
With a range of sophisticated sensor options supported by PlasmaHC and ArgonSep technology for the measurement of NMHC/methane and separation of argon respectively, many applications will be satisfied by a single 4U rack analyzer configuration: all helping to make the SERVOPRO Chroma one of the most compact and powerful trace analyzers available.
Specifications
Brand
Approvals & Certifications
- EMC Directives
- IEC 61010-1 for Electrical Safety
- LVD (EC ”Low Voltage Directive (LVD)” by Application of EN 61010-1 & Rated for over Voltage Category II, Pollution Degree 2)
- Part 15 of the US FCC Rules for Class B Equipment
Flow Rate
- 30 to 60 mL/min (Full Range 10 to 175 mL/min)
Range
- Minimum 0-1 ppm, Max.
