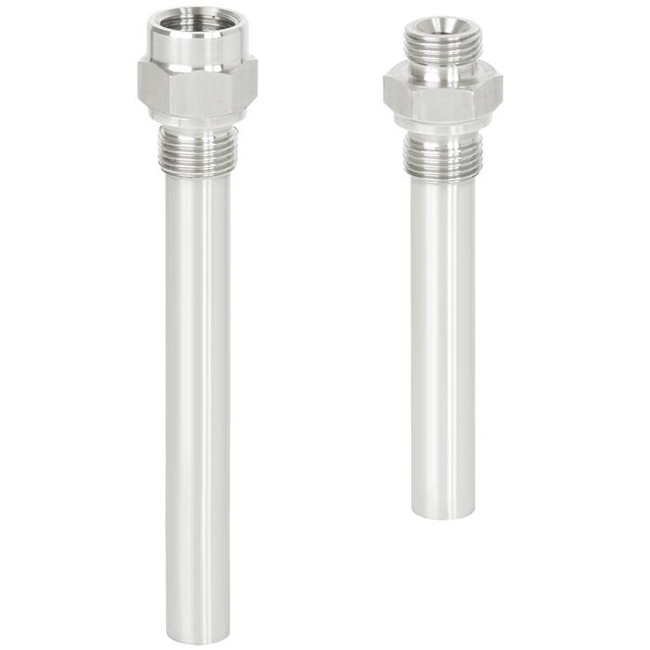

Screw-In Thermowell (Solid-Machined) - TW50
Brand: WIKA Alexander Wiegand SE & Co. KGThe TW50 series of solid-machined screw-in thermowells are suitable for use with numerous electrical and mechanical thermometers from WIKA.
Due to their design to DIN 43772, these thermowells for high process loads are suitable for use in the chemical industry, process technology and equipment manufacturing.
Features- Version per DIN 43772.
- Model TW50-H: Form 6.
- Model TW50-I: Form 7.
- Model TW50-J: Form 9.
Specifications
Thermowell Material
- Stainless Steel 1.4571
Process Connection
- G 1/2” B Male
- G 3/4” B Male
- 1/2” NPT Male
- 3/4” NPT Male
- 1” NPT Male
Bore Size
- Ø 7 mm (0.28 in)
- Ø 9 mm (0.35 in)
- Ø 11 mm (0.43 in)
Insertion Length
- 73 to 410 mm (2.87” to 16.14”)
Connection to Therometer
- G 1/2” Female
- G 3/4” Female
- G 1/2” B Male
- G 3/4” Male
- Chemical industry, process technology, equipment manufacturing
- For high process loads
