Wise Bimetal Thermometer, T751(H), T752(H/L), T753(L), T754(H/HH)

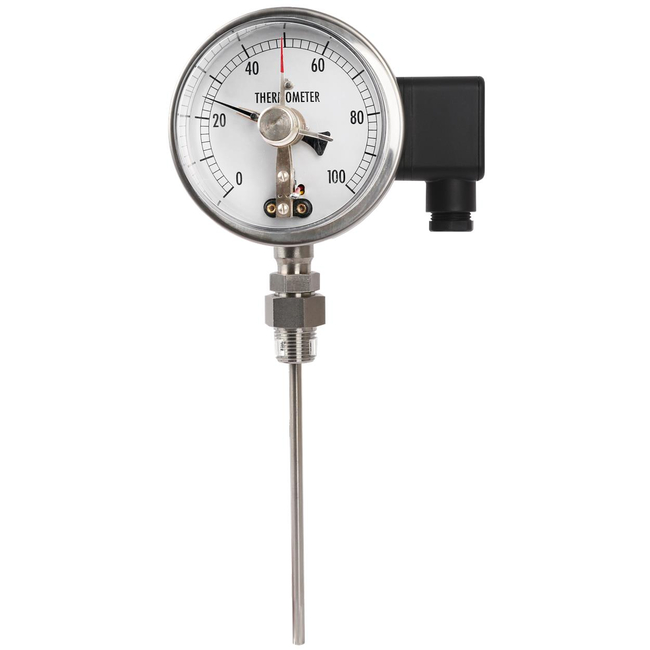

Bi-Metal Thermometer with Electrical Contact T751 (H), T752 (H/L), T753 (L), T754 (H/HH)

Brand: Wise Control Inc
Add Product to My Catalog

Contact type temperature gauge is installed with electric contact actuated by pointer.

It provides the function which electrical circuit can be opened or closed by manual setpoint.

It is applicable where signal is required (Audible or visual alarm) for control of resistance or any other application with auxiliary relay and contact.

Specifications

Brand

Accuracy

  • ± 2.0 % of Full Scale

Case

  • 304 Stainless Steel

Contacts

  • Contact Rating: AC 220 V, 0.25 A
  • DC 100 V, 0.5 A
  • Maximum
  • With max. No. of Contact: 2 Sets per Gauge

Cover

  • 304 Stainless Steel

Dial

  • White Aluminum with Black Graduations

Location of Stem

  • Bottom Connection, Direct Center Back Connection, Direct

Nominal Diameter

  • 100 mm

Options

  • ± 1.0 % of Full Scale

Pointer

  • Black Painted Aluminum Alloy

Stem

  • 304, 316 & 316L Stainless Steel
  • 6.0, 6.4, 8.0 & 10.0 mm

Stem, Process Connection

  • 1/4", 3/8", 1/2", 3/4" PT, NPT & PF

Temperature Element

  • Coiled BiMetal

Window Material

  • Acrylic

Working Range

  • Maximum

Documentation

Data Sheets
