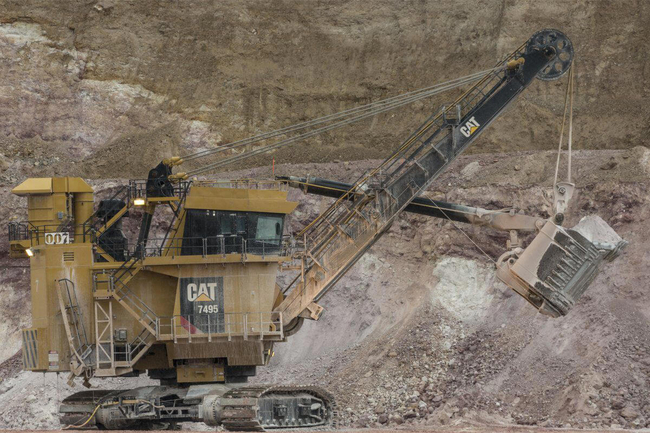

7495 with Rope Crowd
Brand: Caterpillar CorporateElectric rope shovels have been successfully removing overburden and ore on mine sites around the world for more than a century.
Driven by a vision to make these highly productive machines safer, more reliable and even more productive, we challenged the status quo and built an electric rope shovel that's better.
FeaturesA SIMPLER SYSTEM
A streamlined AC system design that runs smoother, has fewer parts, and is easier to maintain, are the benefits you will realize, and the result of three decades of continuous improvement.
- A single, centralized control rack reduces parts requirements, eliminates communication issues between racks, and simplifies maintenance
- A single, compact drive cabinet houses the controller and drives to simplify assembly, troubleshooting, and maintenance
- Fuses, circuit breakers, and line filters have been eliminated reducing potential points of failure and overall parts requirements
- Parallel inverters have been removed to prevent uneven loading and to reduce the number of inverters required by the system
- The IGBT modules have been designed to be interchangeable between inverters and Active Front Ends (AFEs) and between motions and machines
A SAFER SYSTEM
Your safety remains our highest priority, and is evident in our AC system design.
- The high voltage DC bus is located in the back of the drive cabinet and is never exposed during maintenance or troubleshooting
- The centralized control rack keeps maintenance personnel away from high voltage components when troubleshooting the controller
- Shielding blocks induced currents eliminate the need for high frequency bonding
A ROBUST SYSTEM
Helping to ensure your rope shovel remains in service, our AC system is designed to perform in the toughest mining conditions.
- The robust, welded drive cabinet was designed to withstand severe and consistent vibration
- An isolated, positive-pressure room houses the drive/controller cabinet to protect it from dust and debris
- Mine-grade components are used to ensure system performance and long, trouble-free life
Specifications
Brand
Dipper Payload
- 120 t
Dipper Capacity
- 30.6-62.7 m³ (40-82 yd3)
Dipper Payload (Available Dipper Payloads Up to 109 Tonnes (120 tons) when Specified)
- 120 t
Working Weight - with Dipper and Standard Links
- 3056000 lb
Ballast - Furnished By Customer
- 667150 lb
Upper Works Overall Width - Including Standard Walkways
- 41.9 ft
Swing
- Two planetary gearboxes, each driven by a vertically mounted motor, are located on either side of the revolving frame. Dual-output pinion shafts from each gearbox engage the swing rack.
Planetary Propel
- Dual-motor independent drive
Ground Bearing Pressure - Total Effective Bearing Area (200.7 cm) Treads
- 36 m2 (380 kPa), 386 ft2 (55 psi)
Crawler Dimensions - Overall Width 200.7 cm (79 in) Treads, Standard
- 36 ft
Hoist
- A planetary gearbox with dual-output pinions provides the hoist torque transfer from the electric motor to the hoist drum gear.
Crawler Dimensions - Overall Width 259.1 cm (102 in) Treads
- 38 ft
Ground Bearing Pressure - Note
- Ground bearing pressure is dependent upon many factors
Ground Bearing Pressure - Total Effective Bearing Area (259.1 cm) Treads
- 47 m2 (297 kPa), 501 ft2 (43 psi)
Lube System Type
- Automatic, single-line system for open gear lubricant and grease
Lube System Components (1)
- Six pumps (four for open gear lubricant and two for grease) located in an insulated, heated, double-walled lube room
Lube System Components (2)
- External FastFil from lower level
Power Requirements - Voltage
- 3-Phase, 50/60 Hz, 7,200 V
Power Requirements - 60 Hz
- 7,200 V, 13,800 V
Power Requirements - 50 Hz
- 6,000 V, 6,600 V, 7,200 V, 11,000 V
System Voltage - Nominal
- 50/60 Hz, 7,200 V
Drive
- IGBT Acutrol drive system
Power Requirements - Peak Power
- 3737 kW
Power Requirements - Average Power Demand
- 934-1308 kW
Power Requirements - Note
- Other voltage options available to suit customer requirements
Rope Data - Hoist - No.
- 2
Rope Data - Dipper Trip - No.
- 1
Rope Data - Crowd - Diameter
- 2.5 in
Rope Data - Crowd - No.
- 1
Rope Data - Hoist - Diameter
- 2.75 in
Rope Data - Boom Suspension - Diameter
- 3.25 in
Rope Data - Dipper Trip - Diameter
- 0.75 in
Rope Data - Note
- High impact ropes available as an option
Rope Data - Boom Suspension - No.
- 4
Rope Data - Retract - No.
- 1
Rope Data - Retract - Diameter
- 2.5 in
Front End Type
- One piece, forged, seamless tubular dipper handle and wide-spread boom point sheaves equipped with hoist ropes and dipper padlocks to stabilize dipper handle.
Front End Crowd (1)
- Rope Crowd with the crowd machinery is located at the front center of the revolving frame, consisting of motor, brake, drum and gearing. Plastic-impregnated crowd and retract ropes are used to move the dipper handle fore and aft.
Front End Crowd (2)
- (Optional) HydraCrowd, hydraulic power skid, located at the front center of the revolving frame deck, powers a large hydraulic cylinder to move the dipper handle fore and aft.
Maximum Dumping Height
- 28.9 ft
Operating Weight
- 3056000 lb
Radius of Level Floor
- 56.1 ft
Revolving Frame Tail Swing Radius
- 30.5 ft
Cutting Height - Maximum
- 53.5 ft
Cutting Radius - Maximum
- 80 ft
Dumping Height - with Clearance to Open Dipper Door
- 28.9 ft
