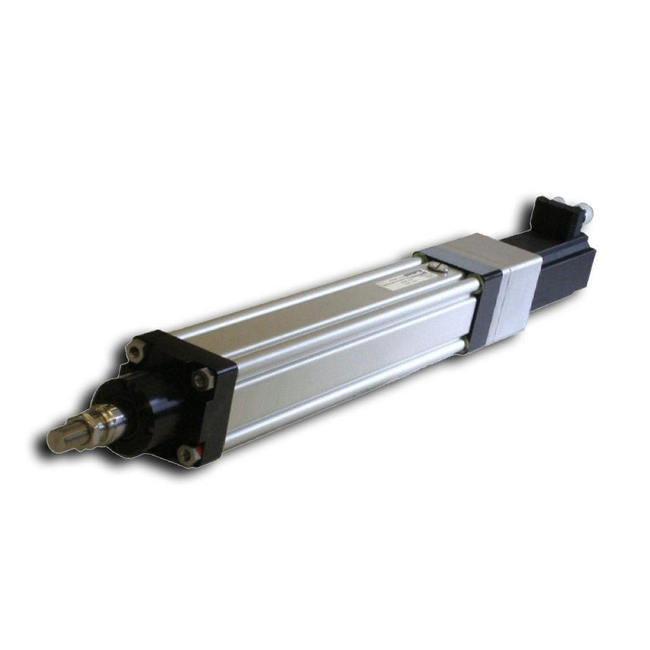

ET125 Screw Driven Electric Cylinder/Linear Actuator with Piston Rod - OBSOLETE
Brand: Parker HannifinWith an ISO125 compatible flange and thrust forces up to 44500N, the ET125 electric cylinders can be mounted in existing fluidpower cylinder applications, adding infinite programmability and control. For new applications Parker recommends the ETH-series.
The ET125 'ElectroThrust' Series of electric cylinder linear actuators combine an unparalleled design with a variety of options that make it easy to integrate into any automation application.
Produced to hard metric ISO standards, the ET-series electric cylinders can be mounted into existing fluidpower cylinder applications, adding infinite programmability and control to the durability and long life expected of hydraulic and pneumatic cylinders.
Features- Cylinder Size : 125 (flange according to ISO 15552-12)
- Thrust forces : up to 44500 N
- Stroke lengths : up to 2400 mm
- Speeds : up to 1.3 m/s
- Accelerations : up to 10 m/s²
- Typical Repeatability : ± 0.07 mm
Specifications
Brand
Corrosion Resistant Option
- Yes (Stainless Steel / Aluminum Parts Outside)
Drive Type
- Screw
IP Protection Rating
- IP54
Maximum Acceleration (Inch/S2)
- 393
Maximum Acceleration (m/S2)
- 10
Maximum Speed (inch/sec)
- 52.75
Maximum Speed (m/sec)
- 1.34
Maximum Stroke (inch)
- 94.4
Maximum Stroke (mm)
- 2400
Maximum Thrust (Lbs)
- 10000
Maximum Thrust (N)
- 44500
Operating Temperature (°C)
- 0° to +60° C
Operating Temperature (°F)
- +32° to +140° F
Position Repeatability (± Inch)
- 0.003
Position Repeatability (± mm)
- 0.07
Profile Width (mm)
- 139.7
Rod End Dimension
- ISO 125
Series
- ET
