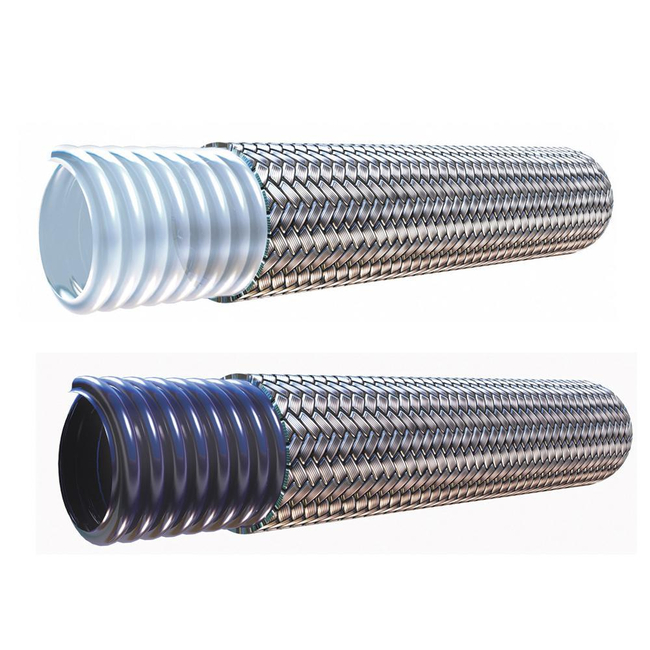

Convoluted PTFE Hose with 316 Stainless Steel Braid - SCW/SCB

Convoluted PTFE Hose with 316 Stainless Steel Braid - SCW/SCB

Brand: Parker Hannifin
Add Product to My Catalog

Parker SCW and SCB hoses are seamless, low profile, environmentally safe, self-draining and able to withstand extreme flexing. They are suitable for fluid handling, chemical transfer, paint and semiconductor applications.

The Parker  939/939B series convoluted PTFE hoses feature superior flexibility and kink resistance for successful operation in chemical transfer, high temperature hydraulics, and hose applications that require tight routings.

In addition, the flexible capabilities of the hose allow for an improved bend radius than a 919/919B hose for simplified routing and installation.

This hose series is offered with a natural, FDA compliant core tube (939) or with a static dissipative core tube (939B) for applications where electrostatic charges could occur during media transfer.

Both are reinforced with a 304 Stainless Steel braid for a durable, flexible, kink-resistant solution in numerous fluid handling, transportation and military market applications.
Features
  • Excellent flexibility
  • Kink resistance for simplified routing and installation
  • Great chemical compatibility
  • High temperature capability

Specifications

Brand

Applications

  • Fluid Handling, Chemical Transfer, Manufacturing / Industrial, Semiconductor, Instrumentation

Color

  • Silver

Compatible Fittings

  • PAGE

Dash Number

  • -4 to -32

Hose I.D. (inch)

  • 1/4”, 3/8”, 1/2”, 3/4”, 1, 1-1/4”, 1-1/2”, 2

Hose I.D. (mm)

  • 6, 10, 13, 19, 25, 32, 38, 51

Hose I.D. (Size)

  • -4, -6, -8, -12, -16, -20, -24, -32

Hose O.D. (inch)

  • 0.46 to 2.42

Hose O.D. (mm)

  • 12 - 62

Hose Style

  • Natural or Static Dissapative

Hose Type

  • PTFE Hose, Convoluted

Industry Standards

  • FDA 21 CFR 177.1550, USP Class VI, ISO 10993 - Sec 5, 6, 10, 11

Maximum Working Pressure (bar)

  • 31 - 104

Maximum Working Pressure (Mpa)

  • 3.1 - 10.4

Maximum Working Pressure (psi)

  • 450 - 1,500

Maximum Working Temperature (°C)

  • 260° C

Maximum Working Temperature (°F)

  • 500° F

Media

  • Chemical Fluids, Industrial Fluids, Abrasive Materials, Air, Water, Technical Gases

Minimum Bend Radius (inch)

  • 3/4” - 4-3/4”

Minimum Bend Radius (mm)

  • 19 - 121

Minimum Working Temperature (°C)

  • -73° C

Minimum Working Temperature (°F)

  • -100° F

Style

  • Natural, Static-Dissipative

Vacuum Rating (inches of Hg)

  • 28

Vacuum Rating (mm of Hg)

  • 711.2

Weight (kg/m)

  • 0.11 to 1.40

Weight (Lbs/Ft)

  • 0.08 - 0.90

  • Chemical transfer
  • General hydraulics
  • Hose applications requiring tight routings
  • High temperature media transfer

Documentation

Catalogs

Document
