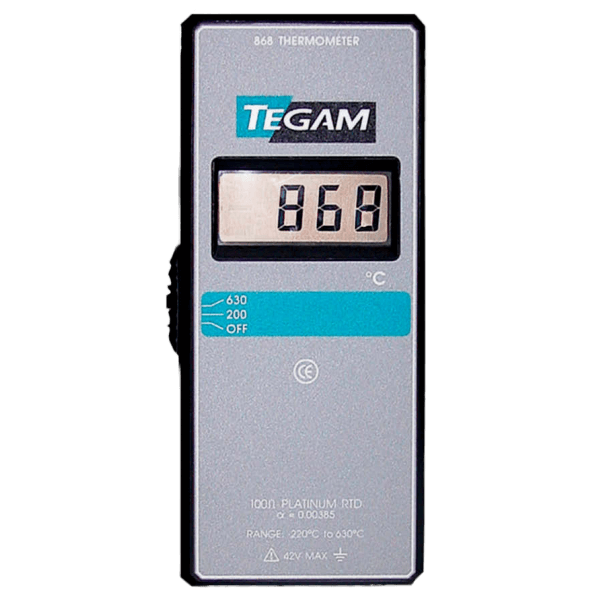

868 Platinum RTD Thermometer

Brand: Tegam

TEGAM’s 868/869 100 Ohms RTD thermometers, the only handheld RTDs that accept three-wire and four-wire platinum probes, and provide repeatable accuracy of 0.3º C.

With exceptional accuracy and the same repeatability and long-term stability of our thermistor units, TEGAM’s 868/869 platinum RTD thermometers detect and display temperatures from -360º to 1,100º F.

They’re ideal for cryogenic and high-temperature research or industrial monitoring.

For your flexibility, we provide a mating connector which allows you to use any 100 ohms RTD probe.

These units are housed in heavy-duty ABS cases that are dust-proof, splash-proof and drop-proof.
Features
  • Accuracy: 0.3º C
  • 1º or 0.1º Resolution
  • º F or º C Scales
  • Big, Easy-to-Read LCD Display
  • One Year Warranty

Specifications

Brand

Accuracy

  • ± 0.2° C (± 0.4° F) at -73° to 93° C (-100° to 199.9° F)
  • ± 1° C (± 2° F) at -73° to 593° C (-100° to 1,100° F)

Approvals & Certifications

  • CE

Display

  • 3-1/2-Digits
  • LCD Display

Loop Resistance

  • 100 ohms - Platinum RTD

Materials of Construction

  • ABS

Power Requirement

  • 9 V Battery

Repeatability

  • 0.1° C (0.2° F) Typical

Resolution

  • 0.1° F at -100° to 199.9° F
  • 1° F at -100° to 1,100° F

Sensor, Probe Material

  • Platinum

Temperature Range

  • -360° to 1,100° F

Unit of Measure

  • Fahrenheit

Version / Leadwires

  • 3-Wire - RTDs
  • 4-Wire - RTDs
