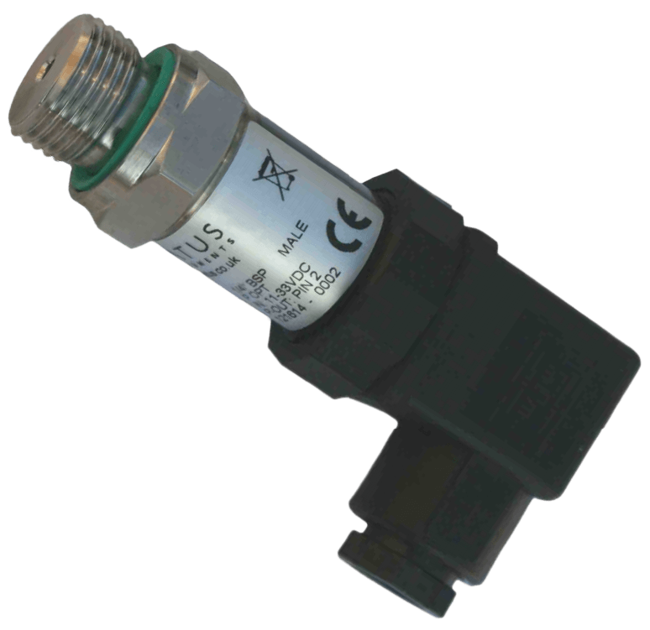

PTX130G3/G4 Pressure Transmitter
Brand: Status InstrumentsThe PTX130G3 and G4 has an oil filled isolated silicon sensor giving it excellent media compatibility and accuracy.
Constructed of stainless steel, it is available with a wide variety of process connections, and every device is temperature compensated.
The electronics are microprocessor based which means no manual adjustment is needed.
The product can be ordered with current or voltage output and has excellent temperature stability.
Features- Measuring range (50 to 2000) mbar
- Oil filled isolated silicon sensor
- 2-Wire (4 to 20) mA or voltage output
- <0.25% fullscale accuracy
- Choice of process connections
Specifications
Brand
Accuracy
- Non-Linearity & Hysteresis: ≤ ± 0.1 % of Full Scale
- Non-Linearity & Hysteresis: ≤ ± 0.25 % of Full Scale
Ambient Temperature Range
- -20° to 80° C (-4° to 176° F)
Approvals & Certifications
- CE
BSP Connection
- G 1/2” Male DIN 3852
- G 1/4” Male DIN 3852
Compensated Temperature
- 20° to 80° C (68° to 176° F)
Diaphragm Material
- 316L Stainless Steel
Electrical Connectors
- AMP 6-Pin Bayonet
- Binder 6-Pin 723 Series
- Cable Gland
- M12 x 1, 4-Pin
- Plug & Socket
Enclosure, Body Material
- 303 Stainless Steel
Environmental Protection
- IP66
- IP68
Fill Material
- Silicone Oil
Load Limit
- Load Influence: 0.05 % of Full Scale Output/kiloohms
Load Resistance
- 10 kiloohms Min. (3-Wire)
Nominal Pressure
- psi: 0.72 to 14.5 (kPa: 5 to 100 bar: 0.05 to 1)
O-Ring Material
- Chemraz
- EPD (Rubber)
- NBR
- Viton
Output
- 0-10 V, 3-Wire
- 4-20 mA, 2-Wire
Overpressure & Static Pressure Limits
- psi: 5.80 to 29.01 (kPa: 40 to 200 bar: 0.4 to 2)
Power Supply Effect
- < 0.05 % of Full Scale - Supply Voltage Influence
Pressure Range
- bar: 0 to 1
- kPa: 0 to 100
- psi: 0 to 14.5
Pressure Type
- Gauge
Process Temperature
- -40° to 120° C (-40° to 248° F)
Shock
- 100 G, 11 milliseconds
Span & Zero Effect
- ≤ -0.015 %/°C - Thermal Span Shift
Storage Temperature
- -40° to 120° C (-40° to 248° F)
Supply Voltage
- 9-32 Vdc
Vibration
- 10 G RMS (20 to 2,000 Hz)
Zero Offset
- ≤ ± 0.02 % of Full Scale/°C - Thermal Zero Shift
- ≤ ± 0.04 % of Full Scale/°C - Thermal Zero Shift
- ≤ ± 0.5 % of Full Scale
