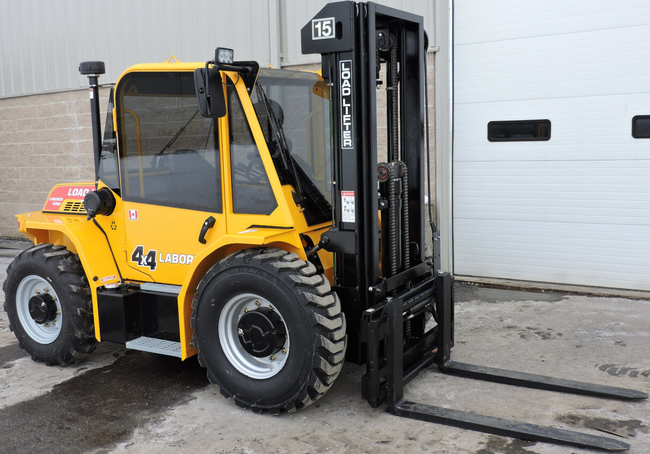

Laborer Series Forklift
Brand: Load Lifter
Compact is the best term to describe the fully redesigned Laborer. Developed originally for the Mining industry, the Laborer is a heavy duty, all-purpose rough terrain forklift that offers big machine features in a condensed format.
Unlike industrial forklifts that share a smaller profile, the Laborer comes in 2 and 4 wheel drive, and offers true rough terrain performance for a wide range of applications.
The ability to negotiate cramped areas and move materials from inside warehouses to the outdoors in all types of conditions is what separates it from conventional rough terrain forklifts.
The all new, fully isolated operators module features a roomy interior, improved ergonomics, and excellent sightlines for the operator.
The module comes with tilt steering, a suspension seat, and full R.O.P.S. & F.O.P.S. certification as standard equipment.
The Laborer utilizes a componentized power train consisting of a 65 HP Interim Tier 4 Diesel or LPG engine, a 4 speed shuttle transmission and heavy duty planetary drive and steer axles.
The new steer axle provides an industry leading turn radius of only 143 inches (2WD only) giving the Laborer unmatched work site maneuverability.
A width of 68 inches for the 6,000 lb. model, and an operator’s module height of 84 inches allow the Laborer to work in areas where conventional rough terrain forklifts cannot maneuver.
Load Lifter offers the Laborer in 6,000, 8,000 & 10,000 lb. capacities with lift heights to 18 feet.
A full range of attachments and vehicle options are available making the Laborer the solution for all types of industries today.
Features- Compact rugged design
- Available in two & four wheel drive
- Widths as low as 68 inches
- Lift heights of up to 18 feet
- 6 – 8 – 10,000 LBS capacity
- Limited slip differential
- Massive front drive axle with outboard planetary drive gears
- Hydraulically oil immersed disc brakes
- Standard 65 HP EPA compliant interim tier 4 Diesel Engine
- Optional 74 HP Turbo Engine
- Optional (LPG) 75 HP 2.4 L, 4 Stroke Engine
- Fully componentized power train
- High ground clearance 9″
- Four speed synchromesh transmission with shuttle
- Full range of integral attachments
- Available high visibility, fully equipped all weather cab
- Fully isolated R.O.P.S. & F.O.P.S. operators module
- Well suited to the Utility & Government and Mining markets
Specifications
Brand
Machine Approximate Weights
- 6000 lb - 2722 kg (11,240 lb)
- 8000 lb - 5629 kg (13,640 lb)
- 10000 lb - 7421 kg (16,360 lb)
Engine Make
- Deutz TD 2.9 Tier 4 Final
Dsiplacement
- 2.9 Litres (177 in³)
Gross H.P.
- 55.4 KW. (74.3 H.P.)
Maximum Torque at 1800 RPM
- 260 N.m. (191.7 ft-lb)
Rated Speed
- 2600 RPM
Transmission Type
- 4 Speed Synchromesh with Power Reverser & Torque Converter
Speeds
- 1 st 4.9 km (3.0 mph)
- 2nd 7.9 km (4.9 mph)
- 3rd 14.9 km (9.2 mph)
- 4th 29.6 km (19 mph)
Hydraulic System Pump
- Gear Type System c/w Load Sense Steering Circuit
Hydraulic System Filter
- 25 Micron Replaceable Element Modular Control Valve c/w Tilt Lock System
Volts
- 12
Alternator
- 95 amp
Instrumentation
- Full LED Display
Cooling System
- 9.5 litres / 10 Quarts
Engine Oil
- 7.0 litres / 7.4 Quarts
Fuel
- 80 litres / 21.1 U.S. Gal.
Hydraulic Oil
- 65 litres / 17.2 U.S. Gal.
Transmission Oil
- 21.4 litres / 22.2 Quarts
Brakes Service
- Hydraulic Oil Immersed Wet Disc
Brakes Parking
- Manual External Disc on Transmission
Axles Drive
- Heavy Duty Outboard Planetary Drive
Axles Steer
- High Strength Cast Steel Housing c/w Planetary Drive Wheel Ends and 46° Lock Angle Large Tapered Roller Bearing Spindle Wheel Ends
