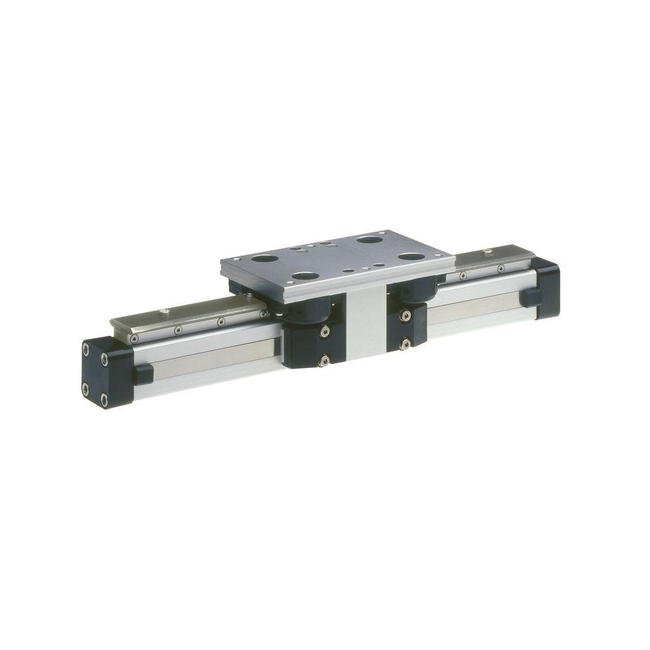

OSPE32-B Belt Driven, POWERSLIDE Roller Guide, Rodless Electric Linear Actuator
Brand: Parker HannifinThe POWERSLIDE roller guide option OSPE32-B belt driven electric linear actuator is designed and engineered to provide an extremely flexible product that can be configured to provide solutions for transfer handling operations within industrial, manufacturing and assembly environments.
Features- Belt driven actuator for dynamic motion and positioning with long travel
- High acceleration and speed for reduced process times
- Roller bearing for smooth travel in high demanding and harsh environments
- Hardened steel guide rail with selective load capability
- Integrated seal strip offering IP54 protection
- Pre-configured motor and gearhead mounting kits for simplified installation
- Dovetailed mounting rails allow simplified clamping of modular system components
Specifications
Brand
Additional Protection Option
- Steel Strip Cover
Approvals & Certifications
- Cleanroom Certified (Custom Option)
Bearing Type
- Powerslide Roller Guide
Corrosion Resistant Option
- No
Drive Type
- Belt
Idler Unit Option
- No
Linear Feedback Device
- No
Maximum Acceleration (Inch/S2)
- 393
Maximum Acceleration (m/S2)
- 10
Maximum Payload FZ (N)
- 1400 - 2300
Maximum Speed (inch/sec)
- 118
Maximum Speed (m/sec)
- 3
Maximum Stroke (inch)
- 137
Maximum Stroke (mm)
- 3500
Maximum Thrust FX (Lbs)
- 34
Maximum Thrust FX (N)
- 150
Position Repeatability (± Inch)
- 0.002
Position Repeatability (± mm)
- 0.05
Profile Width (mm)
- 52
Series
- OSP-E
Typical Payload FZ (N)
- 350 - 2300
- Factory Automation
- Miscellaneous Industrial
- Miscellaneous Manufacturing
- Packaging Machinery
- Printing and Marking Equipment
- Vehicle Assembly Facilities
- Coatings / Ink / Paint
