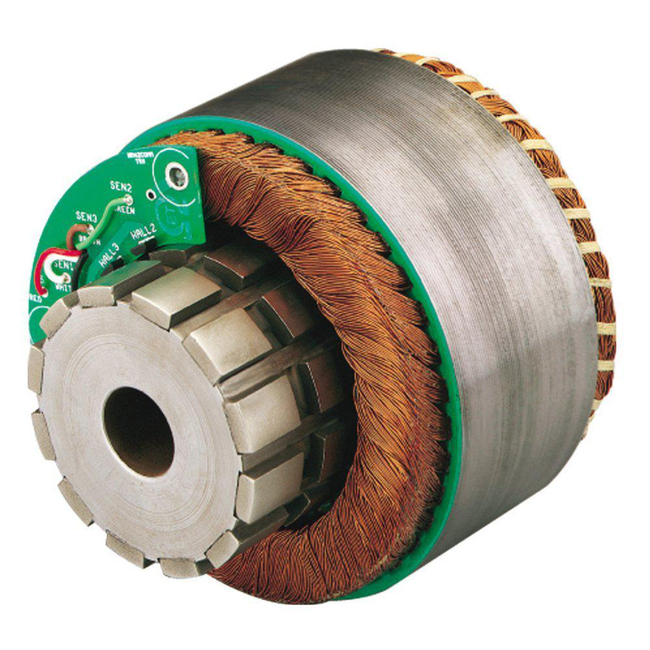

Frameless Servo Motors Series

Brand: Parker Hannifin

Parker’s K-Series frameless motors allow for integration into a machine for direct drive of an axis without the need for additional parts that would add size and compromise system performance.

Direct drive motion construction gives machine builders the advantages of smaller size, better performance and lower cost.

Available in multiple frame sizes, stack lengths and winding options to meet a variety of application requirements.
Features
  • High copper fill and use of high grade neodymium magnets provides strong power density
  • Skewed lamination reduces cogging for low speed applications
  • Commutation hall board for feedback available as an option
  • Frame sizes of 32, 44, 89, 127 and 178mm to meet a wide variety of application requirements

Specifications

Approvals & Certifications

  • UL/cUL Listed

Continuous Torque (In/Lbs)

  • 0.73 - 227.75

Continuous Torque (Nm)

  • 0.08 - 25.7

Cooling Method

  • Air-Cooled

Custom Versions Available

  • Yes

Feedback Device

  • Hall Effect

Frame Size

  • 32 mm / 44 mm / 64 mm / 89 mm / 178 mm

Holding Brake

  • N/A

Input Supply Voltage

  • Various

IP Protection Rating

  • IP00

Parker Drive Compatibility

  • Compax3 / ARIES

Peak Torque (In/Lbs)

  • 2.32 - 723.41

Peak Torque (Nm)

  • 0.26 to 81.7

Rated Speed (rpm)

  • Up to 30,000

Shaft Type

  • N/A

  • Packaging
  • Processing
  • Bottling
  • Milling
  • Conveyors
  • Robotic Propulsion and Ancillary Axis
