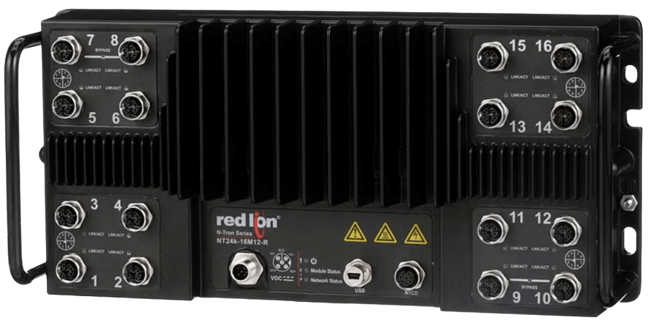

Red Lion Industrial Ethernet Switch, NT24k-16M12-POE

NT24k-16M12-POE Industrial Ethernet Switch

Brand: Red Lion Controls
Add Product to My Catalog

Red Lion’s N-Tron Series NT24k-16M12-POE IP67 managed Gigabit Ethernet switch provides a rugged, dust proof and water resistant enclosure with sixteen 10/100/1000Base-T(X) M12 X-coded ports to create a reliable and secure network capable of delivering up to 30 Watts of power per port to connected PoE capable devices.
Features
  • 16 M12 Copper Ports
    • Sixteen 10/100/1000Base-T(X) copper M12 X-Code ports
  • Redundant 22-49 Vdc Power Inputs
    • Boosts power to meet PoE+ output requirements
  • IEEE 802.3af/at PoE Output
    • 240 W PoE budget configurable across all 16 ports, up to 30 W per port
  • Bypass relay model
    • Bypass relay port pairs (2 pairs) allow network traffic to continue to flow through the switch bypass ports in the event of a power outage
  • N-View monitoring technology provides remote monitoring and firmware management
  • Extended Environmental Specifications
    • -40° to 80°C (-40° to 176° F) operating temperature range
    • > 2M hours MTBF
    • UL/cUL: Class I, Div. 2 Groups A, B, C and D (Pending)
  • Plug-and-Play Operation:
    • IGMP auto-configuration
    • MDIX auto-sensing cable
    • Simple network ring configuration
    • Backup and restore via recovery card or XML configuration file
  • Fully Managed Features Include:
    • Jumbo frame support
    • SNMP v1, v2, v3
    • Web browser management
    • Detailed ring map and fault location charting
    • RSTP - 802.1d, 802.1w, 802.1D
    • Trunking and port mirroring
    • 802.1Q tag VLAN and port VLAN
    • IEEE 802.1x with RADIUS remote server authentication
    • 802.1p QoS, port QoS and DSCP
    • DHCP client
    • Configurable event log
    • Syslog
    • SNTP (Simple Network Time Protocol)
    • Multi-Member N-Ring technology with ~30 ms healing
    • N-Link redundant ring technology
    • N-View monitoring and firmware management technology
    • EtherNet/IP CIP messaging

1 - 5 of 5 Part Numbers
NT24K-16M12-POE
NT24K-16M12-POE
  • Product - IP67 Rated 16-Port Gigabit Managed PoE+ Industrial Ethernet Switch with M12 8-Pin X-Coded Female Connectors (Max 240 W PoE+ Load)
NT24K-16M12-POE-R
NT24K-16M12-POE-R
  • Product - IP67 Rated 16-Port Gigabit Managed PoE+ Industrial Ethernet Switch with M12 8-Pin X-Coded Female Connectors (Max 240 W PoE+ Load), with Bypass Relay
NTCD-CFG-M12
NTCD-CFG-M12
  • Product - NT24k Configuration Recovery Device, M12
NTPS-24-20
NTPS-24-20
  • Product - DIN-Rail Power Supply 20 A, 24 Vdc
NTPS-48-10
NTPS-48-10
  • Product - DIN-Rail Power Supply 10 A, 48 Vdc
1 - 5 of 5 Part Numbers

View_Details

Specifications

Brand

Applications

  • Alternative Energy
  • Manufacturing Processes
  • Oil & Gas
  • Rail/Transportation
  • Water & Wastewater

Approvals & Certifications

  • EN 55011, 61000- 3-2, 61000-3-3, 55032 (Emissions), 55024 (Immunity), 50155, 50121, 61373, 45545-2 (Rail)

Approvals & Certifications

  • CAN/CSA C22.2 No. 213-16, 61010-1-12 Class I & II, Div. 2, & Class III, Divisions 1 & 2 Hazardous (Classified) Locations, Groups A, B, C, D Hazardous Locations
  • CE
  • EMC 2014/30/EU
  • FCC 47 CFR Part 15, Subpart B, ISED Canada ICES-003 Issue 6
  • GOST-R
  • IEEE 802.3, 802.3 u, 802.3ab, 802.3x, 802.1d/D/w, 802.1p, 802.1Q, 802.1x, 1613 (Electric Utility Substations)
  • LVD 2014/35/EU
  • RoHS
  • UL 61010-1 Divisions 1 & 2 Hazardous (Classified) Locations, Groups A, B, C, D

Circuit Protection

  • ESD Protection
  • Surge Protection

Communication

  • EtherNet/IP

Current

  • Inrush: 64.2 A / 0.044 millisecond at 24 Vdc

Electrical Connectors

  • 10/100/1000Base-T: Sixteen (16) M12 X-Code Connector
  • Configuration Port: One (1) USB Typical B
  • M12

Environmental Protection

  • IP67
  • NEMA TS1
  • NEMA TS2

Humidity

  • 10 to 95 % Relative Humidity, Non-Condensing

Indication

  • LED

Input

  • 11.5 A at 24 Vdc (Standard)
  • 11.6 A at 24 Vdc (Bypass Relay)
  • 22-49 Vdc

Mounting

  • Bulk-Head Mounting
  • DIN Rail Mounting

Operating Temperature

  • -40° to 85° C (-40° to 185° F)

Power Supply

  • 1.3 A at 24 Vdc

Shock

  • 200 G at 10 milliseconds (Bulkhead Mounted)

Storage Temperature

  • -40° to 85° C (-40° to 185° F)

Vibration

  • 50 G at 5-200 Hz, Triaxial (Bulkhead Mounted)

Wiring

  • Wiring Clearance Front: 4” (10.16 cm)
