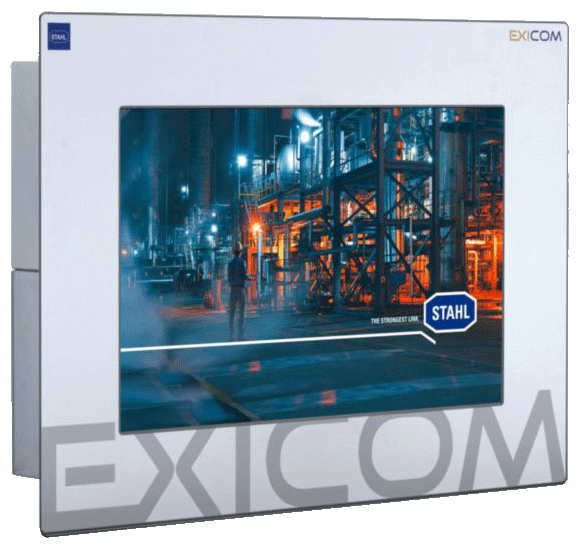

Panel Mount Device PM ET-677

Ambient Conditions

• Ambient temperature operation - -20 °C … +60 °C
• Ambient temperature operation 1 - -30 °C … +60 °C with heater version O30
• Cold start temperature - -10 °C
• Storage temperature - -30 °C … +70 °C
• Temperature note 1 - The O30 version is only available for the AC version devices !
• Temperature note 2 - Operating temperature +60 °C for a maximum of 5 h, for constant operation (24/7) +50 °C.
• Temperature note 3 - Cold start temperature: If the HMI device is switched on at a temperature below -10 °C the display will need a certain amount of time to warm up until everything is clearly visible. Depending on how low the temperature is, this process may last up to 3 hours.

Components

• Keyboard - optional, 107 keys with trackball / joystick / mouse / touchpad (Ex ia)

Display

• Backlight - LED Technology
• Backlight service life - 50 000 h at +20 °C
• Display brightness - 300 cd/m²
• Display contrast - 1000:1
• Display dimensions - 16:9
• Display resolution - Full HD
• Display size centimetres - 61
• Display size inch - 24
• Display version - TFT Colour display
• Display version 2 - 16.7 million colours
• Front plate (display) - Aluminium
• Total pixels - 1920 x 1080
• Touch screen - Optional resistive
• Touch screen technology - 5-wire glass or membrane touch

Electrical Data

• Connection compartment - Power supply direct in integrated Ex e connection box
• Connections - via screw terminals, green
• Data cable - 9/125 μm FO cable
• Data cable length - max. 10 km
• Ethernet / Data - Optical fibre single mode
• Frequency range - 50 - 60 Hz
• Interface Audio - 1 x Audio Line in / out (Ex e)
• Interface medium - Single-mode optical fibre cable
• Interface Serial - 1 x RS-232 (Ex e)
• Interface USB - 2 x USB (Ex ia) 1 x USB (Ex e) 2 x USB (Ex ia) (keyboard, pointing device)
• Max. input voltage Um - 250 VAC
• Plug version FO - LC duplex connector
• Power consumption AC 1 - 1 A
• Power consumption DC - 3 A
• Protection fuse AC - 5 AT
• Protection fuse DC - 5 AT
• Rated operational power - typically 50 W / 100 W at O30 / max. 150 W (typically 170 BTU / 341 BTU at O30 / max. 510 BTU)
• Rated operational voltage AC - 230 V
• Rated operational voltage DC - 24 V
• Transfer technology - KVM-DVI3
• Voltage range AC - 100 - 240 V
• Voltage range DC - 20 - 30 V
• Wiring - flexible cable up to 2.5 mm² (AWG14) fixed cable up to 4 mm² (AWG12)
• WLAN - optional via USB

Explosion Protection

• Application range (divisions) - Class I, Division 2
• Application range (zones) - 1 2 21 22
• Certification ATEX - BVS 11 ATEX E 102 X
• Certification CEC - 70011698
• Certification DNV / GL - TAA00000BK ET-677-DVI3-yM-FO-TFT-TG-AC-O30-AL devices only!
• Certification EAC - TC RU C-DE.ГБ04.B00478
• Certification IECEx - IECEx TUR 11.0075X
• Certification KCC - Touch version only, not glass touch
• Certification KGS - 12-GA4BO-0617X
• Certification NEC - 70011698
• Certifications - ATEX, IECEx, NEC, CEC, EAC, KGS
• Dust explosion protection ATEX - II 2(1) D Ex tb IIIC [ia op is Da] IP65 T110°C Db
• Dust explosion protection EAC - Ex tb IIIC [ia op is Da] IP65 T110°C Db
• Dust explosion protection IECEx - Ex tb IIIC [ia op is Da] IP65 T110°C Db
• Explosion protection CEC - Ex e q [ia] IIC T4 Gb Class I, Division 2
• Explosion protection KGS - Ex e q IIC T4 Ex tb IIIC IP64 T110°C Ex ia IIC T4 Ex ia IIIB T110°C
• Explosion protection NEC - Class I, Zone 1 AEx e q [ia] IIC T4 Gb
• Gas explosion protection ATEX - II 2(1) G Ex e q [ia op is Ga] IIC T4 Gb
• Gas explosion protection EAC - 1Ex e q [ia op is Ga] IIC T4 Gb X
• Gas explosion protection IECEx - Ex e q [ia op is Ga] IIC T4 Gb

General

• Functional Description - The PM ET-677-DVI3 HMI series includes KVM systems for panel mounting in hazardous zones 1, 2, 21, 22 and Division 2. Their brilliant 24" widescreen displays with a resolution of 1920 x 1080 pixels (format 16:9), are available with or without touch screen. Country-specific keyboards, pointer instruments and RFID and barcode scanners are useful accessories making work easier and extending functionality. Data is transmitted via single mode fibre optic up to 10 km.
• Highlights - KVM system for panel mounting, 24" display, full HD 1920 x 1080 Zone 1, 2, 21, 22 und Division 2, can be installed in hazardous areas without additional enclosure Optional resistive glass or foil touch screen Data transmission via single mode fibre optic up to 10 km.
• HMI type - Panel-mount device
• Product description - 24" KVM system
• Product Description - KVM system SERIES 600 Device platform MANTA
• Product Type - PM ET-677-DVI3-SM
• Series - Product Series PM ET-677
• Technology - Remote HMI KVM
• WebCode - ET677A

Mechanical Data

• Cable gland cable diameter range - M16 = 4 … 8 mm / M20 = 6 … 12 mm / M25 = 14 … 18 mm
• Cable gland number - 2 x M16, 1 x M20, 3 x M25
• Cable gland thread size - M16 x 1.5 / M20 x 1.5 / M25 x 1.5
• Cable gland type - HSK-M-Ex
• Cable gland wrench size - M16 = SW 19 / M20 = SW 22 / M25 = SW 30
• Cut-out - 615 mm x 435 mm (+/-0.5 mm)
• Depth of cut-out - 110 mm
• Dimensions (WxHxD) - 660 mm x 475 mm x 110 mm
• Ingress protection - IP66
• IP enclosure back - IP65
• IP enclosure front - IP66
• Material back - Steel
• Material front - Aluminium
• Mounting position - vertical or horizontal
• Wall thickness - ≤ 5 mm
• Weight - 32 kg

Mounting / Installation

• Mounting option - Panel-mount
