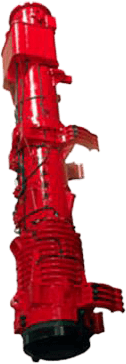

D8-42 Diesel Hammer
Brand: PACO Ventures, LLCSpecifications
Brand
Pump Setting 1
- 9,480 ft-lb (13 kNm)
Pump Setting 2
- 10,350 ft-lb (17 kNm)
Pump Setting 3
- 15,570 ft-lb (21 kNm)
Pump Setting 4
- 18,760 ft-lb (25 kNm)
Blows Per Minute
- 37-52
Related Piston Stroke
- 5 - 11 ft (1.6 - 3.2 m)
Fuel Consumption at Full Load
- 1 gal/hr (3.8 L/hr)
Oil Consumption
- 0.13 gal/hr (0.5 L/hr)
Hammer
- 4,000 lb (1,185 kg)
Piston
- 1,770 lb (800 kg)
Hammer w/ Standard Guiding
- 5,350 lb (2,426 kg)
Fuel Tank
- 5 gal (20 liters)
Oil Tank
- 2 gal (6 liters)
A - Length
- 15 ft (4,695 mm)
LH - Length, Standard
- 19 ft (5,790 mm)
B - Center to Trip
- 13 inches (330 mm)
C - Center to Pump Guard
- 15 in (381 mm)
D - Width of Hammer
- 17 in (420 mm)
D1 - Width of Trip
- 25 in (622 mm)
W - Minimum Lead Width
- 21 in (534 mm)
