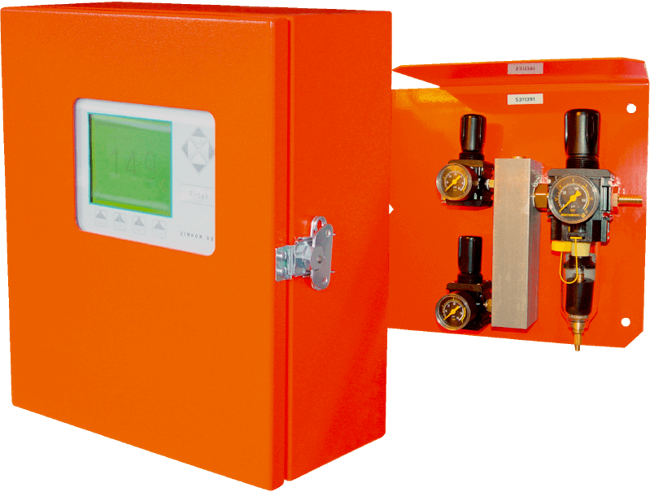

ZIRKOR302 In-Situ Gas Analyzers

Brand: Sick AG
Add Product to My Catalog

The ZIRKOR302 in-situ gas analyzer from SICK can be relied upon to measure oxygen quickly even at increased temperatures.

Thanks to the flow sensor measurement principle, it does not require expensive test gases – ambient air is sufficient.

The analyzer is not an ignition source in the measurement gas due to its safety-related construction.

The optional evaluation unit allows you to operate up to three analyzers.
Features
  • Automated testing and adjustment with ambient air
  • No expensive test gases required
  • Reignition into the measurement gas not possible because the sensor is located outside the measurement gas
  • Process monitoring even at high temperatures
  • Quick measurement directly in the process for timely control

1 - 1 of 1 Part Numbers
ZIRKOR302
ZIRKOR302
SICK In-Situ Gas Analyzers
1 - 1 of 1 Part Numbers

Specifications

Brand

Certifications & Approvals

  • CE

Enclosure Rating

  • IP67/NEMA 4X
  • IP65/NEMA 4X

Gas Flow Rate

  • 0.5 L/h

Measuring Range

  • Certified: 0 to 21 Vol. %
  • 0 to 10 Vol. % / 0 to 25 Vol. %

Response Time

  • ≤ 20 s, with Standard Gas Sampling Device, Length = 1 m

Process Temperature

  • Ceramics Probe: 0° to 1,400° C
  • Inconel Probe: 0° to 950° C
  • Stainless Steel Probe: 0° to 700° C

Process Pressure

  • 700 to 1,100 hPa

Ambient Temperature

  • -20° to 55° C

Storage Temperature

  • -40° to 85° C

Power Supply

  • 115 Vac / 230 Vac, 48 to 62 Hz, Power Consumption ≤ 250 VA

Material of Construction

  • Stainless Steel 1.4571

Communication

  • Serial
  • RS-232
  • CAN Bus

  • Reference Value formation during emission monitoring
  • Monitoring of oxygen surpluses
  • Monitoring of inert gas atmospheres
