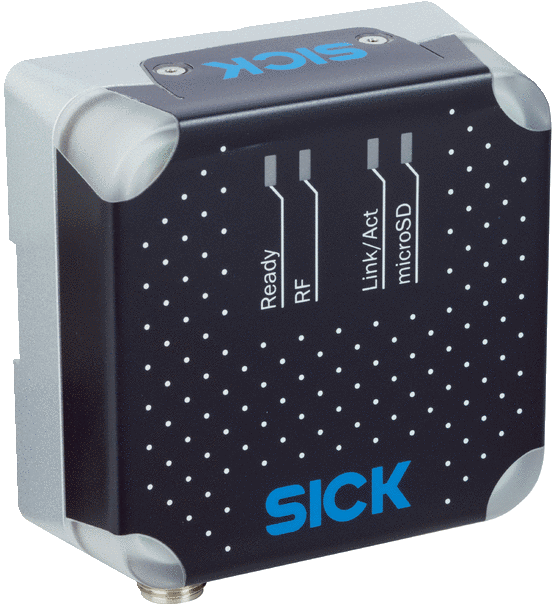

RFU61x Series RFID

Brand: Sick AG

The RFU61x is the smallest read/write device of its type on the market. It is perfectly suited for IoT applications directly on the workpiece or component. The RFU61x therefore rounds out the UHF product family from SICK by enabling continuous identification along the entire value chain for the first time. The interfaces of the RFU61x enable direct connection of a trigger sensor, whereby the RFU61x can be used as a remote, self-supporting unit.

Thanks to the integrated process logic, data can be processed directly in the RFU61x and passed onto the control. Like the other RFU devices, the RFU61x can also be programmed according to individual requirements using the SICK AppSpace eco-system.
Features
  • The small size enables versatile application possibilities even if space is tight
  • Quicker and cheaper installation thanks to direct connection option for trigger sensors
  • Very little programming work needed in the control due to intelligent process logics in the device
  • Easy configuration through SOPAS ET or the integrated web server saves time and costs for commissioning
  • Maximum flexibility when programming individual software solutions with SICK AppSpace
  • The rugged design enables reliable operation - even in tough industrial environments

1 - 11 of 11 Part Numbers
1091102
1091102
  • Radio Approval - Europe, South Africa
  • Type - RFU610-10600
1099890
1099890
  • Radio Approval - USA, Canada, Mexico
  • Type - RFU610-10601
1101394
1101394
  • Radio Approval - China
  • Type - RFU610-10605
1104441
1104441
  • Radio Approval - Malaysia
  • Type - RFU610-10614
1104443
1104443
  • Radio Approval - India
  • Type - RFU610-10603
1104444
1104444
  • Radio Approval - Brazilian
  • Type - RFU610-10604
1104445
1104445
  • Radio Approval - Taiwan
  • Type - RFU610-10613
1104446
1104446
  • Radio Approval - Korea
  • Type - RFU610-10610
1104447
1104447
  • Radio Approval - Japan
  • Type - RFU610-10607
1104448
1104448
  • Radio Approval - Vietnam
  • Type - RFU610-10618
1104449
1104449
  • Radio Approval - Singapore
  • Type - RFU610-10609
1 - 11 of 11 Part Numbers

Specifications

Brand

Enclosure Rating

  • IP67

Reading Distance

  • ≤ 0.5 m

Frequency Band

  • UHF (860 to 960 MHz)

Communication Interface

  • EtherNet/IP
  • Ethernet
  • PROFIBUS DP
  • USB

  • Workpiece Identification on Assembly Lines
  • Identification of Production Material in Machines
  • Load Identification on Mobile Platforms
  • Material Procurement in E-Kanban
  • Container Identification In Conveyor Systems
