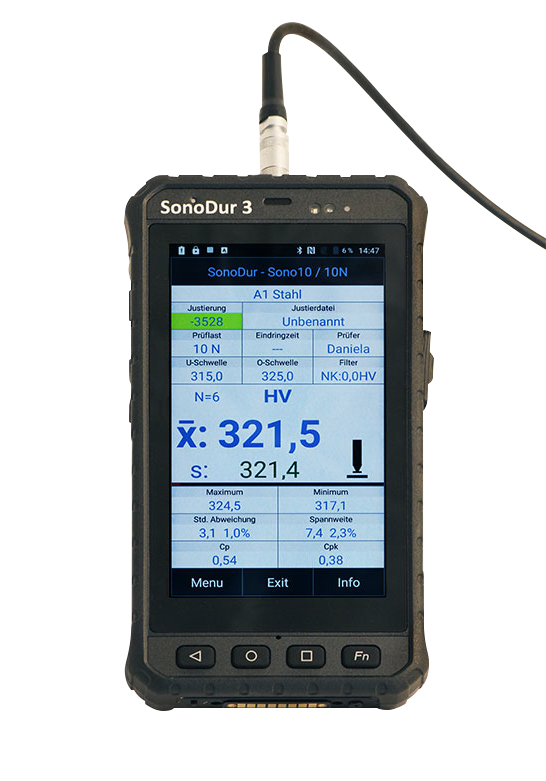

SonoDur 3 Highly Reliable UCI-Hand-Probes
Brand: Institut Dr. Foerster GmbH + Co. KGThe SonoDur3 is exemplary in terms of a good overview and uncomplicated handling, just as its predecessor SonoDur2 was. Nevertheless, it shows ground-breaking improvements as compared to the predecessor model.
The SonoDur3 is robust, which makes it industry-capable. Specifically developed and built for demanding everyday use, it has a high functionalityand can be expanded similar to smartphones and tablet PCs. Its high-performance energy concept means that special measures for the provision and surveillance of different power supplies are not necessary.
Replacement batteries for SonoDur3 and the corresponding charging stations ensure 100% availability.
Features- Carrying strap, edge protection, IP65, MIL-810G (vibration, shock, drop)
- Brilliant color display in 5’’, smooth glass shield for easy cleaning
- Direct function access just by touch, intuitive menu control, ideal for MIC10/MIC20 users and others
- No set-up needed at beginning of shift – ready for immediate use
Specifications
Operating Time
- 10 hrs
Charging Time
- Ca. 3 hrs
Dimensions Instrument
- 164 x 86 x 23 mm
Weight Instrument
- ca. 320 gr (Incl. Battery Pack)
Screen
- 5“ Sunlight Readable Multi Touch Display (1280 x 720 pixel)
- LED-backlight (500 Cd/m2), Adjustable
Storage Capacity
- ARM® Cortex™-A53 Octa Core 1.3 GHz / System 2GB RAM / Storage Memory 16 GB eMMC / Micro SD card 4 GB (Up to 32 GB )
Environmental Protection
- IP65
Operating System
- Android 5.1 (Android 7.0)
- Hardness Testing on Serial Parts Following Heat Treatment
- Hardness Testing on Parts Following Surface Processing
- Measuring Coating Hardness on Gravure Cylinder
