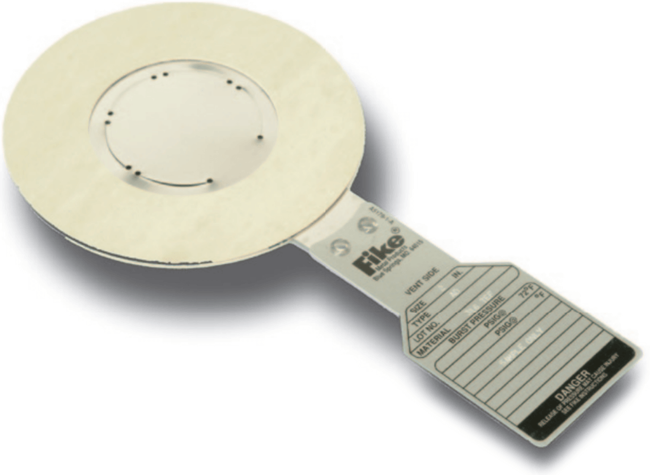

AD Series Bolt Type Rupture Disc
Brand: Fike CorporationThe Fike AD Series Bolt Type Rupture Disc is specifically designed for overpressure and/or vacuum protection of atmospheric vessels. The AD-V Series Bolt Type Rupture Discs are designed for overpressure only.
Features- Flat disc, no special holders required, install between standard ASME 150 companion flanges
- Compressed non-asbestos (aramid fiber with nitrile rubber binder) gaskets are pre-attached on both sides of disc
- Standard materials of construction are 316 SST top and bottom sections with a fluoropolymer seal
- 50% operating ratio
Specifications
Brand
Approvals & Certifications
- CE
- CSA
Burst Pressure
- psig: 1 to 15 (kPa: 6.9 to 103.4, bar: 0.069 to 1.034)
Enclosure, Body Material
- 316 Stainless Steel
- 316L Stainless Steel
Gasket Material
- Gylon
- Non-Asbestos
- Teflon
- Viton
Operating Temperature
- Maximum
Seat / Seal Material
- Seal: Fluoropolyer
Size
- 2” to 24”
