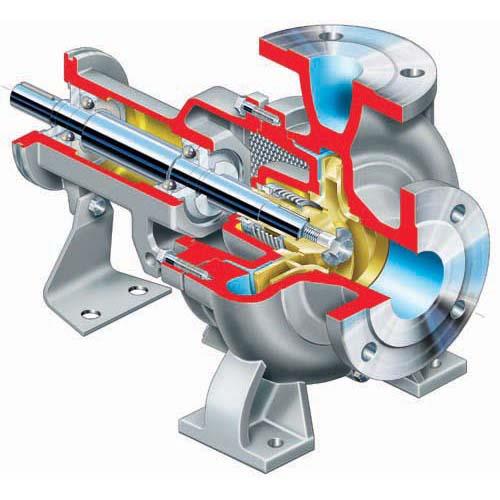

MEN Series Industrial Process Pump
Brand: Flowserve CorporationThe MEN Series of single-stage, end suction water pumps provides broad hydraulic coverage with low total cost of ownership.
MEN Series pumps feature optimized hydraulics and rugged construction to deliver long, reliable and efficient performance.
Features- Single Volute Casing Design Has A Centerline Discharge And Raised Face Flanges To ISO PN 10/16 Or ANSI B16.1 Specifications.
- Back Pull-Out Design Facilitates Inspection And Maintenance.
- Precision Cast Closed Impeller Has Machined Shrouds And Is Dynamically Balanced For High Efficiency.
- Axial Thrust Is Minimized By A Balancing Chamber And Holes On The Rear Side.Integral, One-Piece Cast Iron Bearing Frame Provides Excellent Rigidity And Concentricity To Minimize Vibration.
- Three Bearing Frame Sizes Apply: 24, 32 and 42.
- All Sizes Utilize Large Diameter Greased-For-Life Bearings.
- Open Seal Chamber Features Integral Vortex Breaking Ribs To Extend The Life Of Mechanical Seals.
- Oversized Stainless Steel Shaft Is Conservatively Designed To Minimize Deflection And Reduce Wear.
Specifications
Brand
Operating Parameters
- Flows to 800 m³/hour (3520 gpm)
- Heads to 140 m (450 ft)
- Pressures to 16 bar (230 psi)
- Temperatures from -10° C (15° F) to 120° C (250° F)
Size Range
- Sizes from 32 mm (1.25”) to 150 mm (6”)
