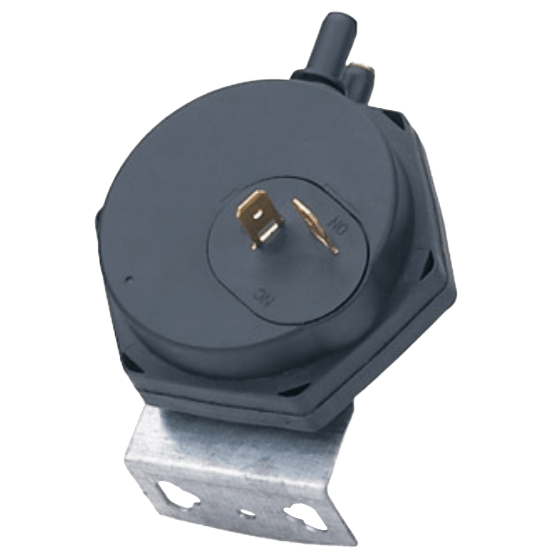

LF31 Pressure Switch
Brand: MamcoThe MAMCO LF31 series switch was designed for use in the HVac industry where safety and reliability are essential. Despite the design intent, this series has proven to be a viable solution for many pneumatic applications as well.
Available in vacuum switch, differential switch and pressure models with fine silver or gold cross bar contacts, the LF31 is capable of detecting very low pressures.
Factory calibrated units maintain set point tolerances of ±10% over a temperature range of -40° to 185° F due to its molded silicone diaphragm and the stability of its glass filled polyester body.
MAMCO/LEFOO offers multiple electrical terminations and mounting options as well as bleed holes and three different size orifices. This switch series is not only the leading product in the market offering the highest quality and reliability but is also the most economical.
Specifications
Brand
Applications
- HVac Industry
- Pneumatics
Tube Connection
- 6.4 mm
Electrical Rating
- Current: 100 mA Min., 5 A (Resistive) - Max.
- Current: 15 mA Min., 0.5 A, Max.
Electrical Connectors
- Terminals: 6.4 mm to 4.8 mm
Burst Pressure
- psi: 5 (kPa: 34.47, bar: 0.3447) Min.
Proof Pressure
- Inches WC: 100
- psi: 3.6 (kPa: 25, bar: 0.25)
Operating Temperature
- -40° to 85° C (-40° to 185° F)
Resistance
- Initial: < 50 milliohms
Mounting Position
- Diaphragm in Any Vertical Plane
Set Point - Increasing
- Inches WC: 0 to 34
- mbar: 0 to 84.6
- mmHg: 0 to 63.52
Set Point - Decreasing
- Inches WC: 0 to 34
- mbar: 0 to 84.6
- mmHg: 0 to 63.52
System Pressure
- Inches WC: 100
- kPa: 24.8
- mbar: 248
- psi: 3.6
Materials of Construction
- Electrical Contact: Fine Silver Alloy
- Electrical Contact: Gold Platinum Silver Alloy
Enclosure, Body Material
- Glass-Filled Polyester
- Silicon
Media
- Air
- Natural Gas
- Products of Combustion
Approvals & Certifications
- ISO 9001: 2000
Switch Type
- SPDT
- SPST
Tolerance
- Set Point: ± 10 %
- HVac Industry
- Pneumatics
