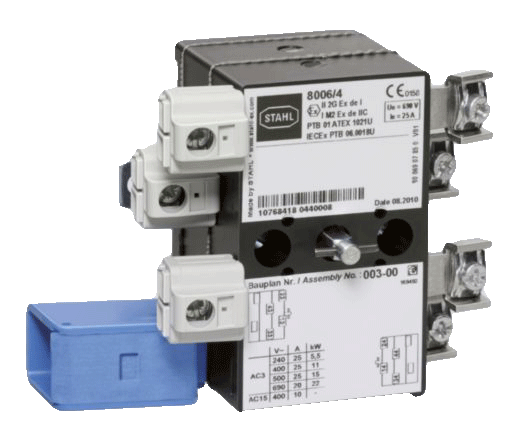

Load and Motor Switches Series 8006/4

Load & Motor Switches Series 8006/4

Brand: R. STAHL AG
Add Product to My Catalog

R. STAHL's 8006/4 series load and motor switches have isolating functions and AC-3 and DC-23 switching capacity. This makes them suitable for use as motor switches or main switches.

They can also be used as control switches. They are available with different switching arrangements, from two-pole to 12-pole.
Features
  • Can be used as a motor, main and load disconnect switch, as well as a control switch
  • rated operational voltage up to 690 V AC and 220 V DC
  • a variety of switching arrangements available

1 - 1 of 1 Part Numbers
203062
203062
R. STAHL Load and Motor Switch According to the Order
Can be used as a motor, main and load disconnect switch, as well as a control switch

rated operational voltage up to 690 V AC and 220 V DC

a variety of switching arrangements available

Electrical Data

  • Rated operational current - 25.000 A
  • Rated operational voltage AC - 690.00 V
  • Rated operational voltage DC - 24.00 V
  • Short-circuit protection max. - 35 A
  • Short-circuit strength - 20.00 kA
  • Tripping characteristic - gG

Explosion Protection

  • Application range (zones) - 1, 2
  • ATEX gas certificate - PTB 01 ATEX 1021 U
  • Certificates - ATEX (PTB), Brazil (ULB), Canada (FM), Canada / USA (UL), IECEx (PTB), USA (FM)
  • Explosion protection 2 - Class I, Zone 1 AEx db eb IIC
  • Explosion protection 3 - Class I, Division 2
  • Gas explosion protection ATEX - II 2 G Ex db eb IIC T6
  • Gas explosion protection IECEx - Ex db eb IIC T6
  • IECEX gas certificate - IECEx PTB 06.0018U
  • NEC 500 zones - Class I, Zone 1
  • NEC 505 gas Ex-type - AEx
  • NEC 505 zones - Class I, Division 2

General

  • Functional Description - R. STAHL's 8006/4 series load and motor switches have isolating functions and AC-3 and DC-23 switching capacity. This makes them suitable for use as motor switches or main switches. They can also be used as control switches. They are available with different switching arrangements, from two-pole to 12-pole.
  • Highlights - Can be used as a motor, main and load disconnect switch, as well as a control switch rated operational voltage up to 690 V AC and 220 V DC a variety of switching arrangements available
  • Product Description - Load and motor switch According to the order
  • Product Type - 8006/4-...-..
  • Product Variant - Load and Motor Switches Series 8006/4
  • Title Product Variant Technical Data - 8006/4-...-..-55 Switch acc. order -55°C
  • WebCode - 8006B

Mechanical Data

  • Connection cross-section - 6.0 mm²
  • Connection cross-section finely stranded max. - 6.00 mm²
  • Connection cross-section min. - 1.50 mm²
  • Connection cross-section solid max. - 6.00 mm²
  • Contact material - Silver cadmium
  • Degree of protection (IP) - IP20
  • Enclosure material - Epoxy resin
  • Service life, min. - 500,000 operating cycles

Mounting / Installation

  • Connection type - Screw terminal
