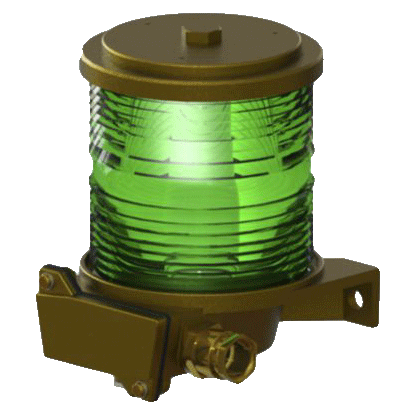

Navigation Light Series TEF2870
Brand: R. STAHL AGExtensively tested in rough environments, navigation lights from Tranberg are the obvious choice by many vessel designers, ship owners and yards throughout the world.
Our products and services meet the highest quality standards, perform reliably and efficiently to exceed customers’ expectations and assure market competitiveness.
The design of Tranberg’s navigation lights is based on many years of experience and research in the field of professional Marine lighting.
Carefully selected materials are used to ensure maximum performance, low maintenance and long trouble free life.
Features- Integrated terminal box, no need for extra connection box
- Access to bulb from top - enabling quick replacement of light source
- Supplied with isolators to be used between the lantern and hull/mast (such as aluminium) to prevent corrosion
- Durable bracket in stainless steel (SS316L) can be used when installing the lantern on 1” or 2” pipes
- 20 years warranty on lantern
- Extremely durable to mechanical deterioration
- Designed for use in arctic and tropical waters
- Small dimensions
- Resistant to vibrations
- Lens of through-colored glass ‒ no discoloration throughout the lifetime of the lantern
- The lens can easily be cleaned for paint, bird droppings, pollution and oil
1 - 10 of 10 Part Numbers
242123
Integrated terminal box, no need for extra connection box
Access to bulb from top - enabling quick replacement of light source
Supplied with isolators to be used between the lantern and hull/mast (such as aluminium) to prevent corrosion
Durable bracket in stainless steel (SS316L) can be used when installing the lantern on 1” or 2” pipes
20 years warranty on lantern
Extremely durable to mechanical deterioration
Designed for use in arctic and tropical waters
Small dimensions
Resistant to vibrations
Lens of through-coloured glass ‒ no decolouration throughout the lifetime of the lantern
The lens can easily be cleaned for paint, bird droppings, pollution and oil
Ambient Conditions
- Ambient temperature - -52 °C ... +50 °C
- Ambient temperature max. - +50 °C
- Ambient temperature min. - -52 °C
Components
- Drilled holes - 1 x M20
- Screw connections - 1 x M20 Ø 6.5 – 14 mm
Electrical Data
- Power - 40.00 - 40.00 W
- Rated operational voltage AC - 24.00 - 24.00 V
Explosion Protection
- Ambient temperature °C - -52 - 50 °C
- Application range (zones) - 2
- ATEX gas certificate - PRESAFE 14 ATEX 5436X
- Gas explosion protection ATEX - II 3 G Ex nR IIC T5 Gc
- Gas explosion protection IECEx - Ex nR IIC T5 Gc
- IECEX gas certificate - IECEx PRE 14.0055X
General
- Functional Description - Extensively tested in rough environments, navigation lights from Tranberg are the obvious choice by many vessel designers, ship owners and yards throughout the world. Our products and services meet the highest quality standards, perform reliably and efficiently to exceed customers’ expectations and assure market competitiveness. The design of Tranberg’s navigation lights is based on many years of experience and research in the field of professional Marine lighting. Carefully selected materials are used to ensure maximum performance, low maintenance and long trouble free life.
- Highlights - Integrated terminal box, no need for extra connection box Access to bulb from top - enabling quick replacement of light source Supplied with isolators to be used between the lantern and hull/mast (such as aluminium) to prevent corrosion Durable bracket in stainless steel (SS316L) can be used when installing the lantern on 1” or 2” pipes 20 years warranty on lantern Extremely durable to mechanical deterioration Designed for use in arctic and tropical waters Small dimensions Resistant to vibrations Lens of through-coloured glass ‒ no decolouration throughout the lifetime of the lantern The lens can easily be cleaned for paint, bird droppings, pollution and oil
- Product Description - Navigation light 2870 M lamp
- Product Type - TEF28700019
- Title Product Variant Technical Data - TEF28700019 Lantern vessels >20m
- WebCode - T2870A
Lighting Data
- Lamp - P28S lamp base
- Lamp type - Masthead
- Opening angle - 225.0 °
Mechanical Data
- Colour of glass - white
- Degree of protection (IP) - IP56
- Enclosure material - brass
- Material Dome - Lens made of stained glass
- Type of connection cable - Finely stranded, solid
242124
Integrated terminal box, no need for extra connection box
Access to bulb from top - enabling quick replacement of light source
Supplied with isolators to be used between the lantern and hull/mast (such as aluminium) to prevent corrosion
Durable bracket in stainless steel (SS316L) can be used when installing the lantern on 1” or 2” pipes
20 years warranty on lantern
Extremely durable to mechanical deterioration
Designed for use in arctic and tropical waters
Small dimensions
Resistant to vibrations
Lens of through-coloured glass ‒ no decolouration throughout the lifetime of the lantern
The lens can easily be cleaned for paint, bird droppings, pollution and oil
Ambient Conditions
- Ambient temperature - -52 °C ... +50 °C
- Ambient temperature max. - +50 °C
- Ambient temperature min. - -52 °C
Components
- Drilled holes - 1 x M20
- Screw connections - 1 x M20 Ø 6.5 – 14 mm
Electrical Data
- Power - 40.00 - 40.00 W
- Rated operational voltage AC - 24.00 - 24.00 V
Explosion Protection
- Ambient temperature °C - -52 - 50 °C
- Application range (zones) - 2
- ATEX gas certificate - PRESAFE 14 ATEX 5436X
- Gas explosion protection ATEX - II 3 G Ex nR IIC T5 Gc
- Gas explosion protection IECEx - Ex nR IIC T5 Gc
- IECEX gas certificate - IECEx PRE 14.0055X
General
- Functional Description - Extensively tested in rough environments, navigation lights from Tranberg are the obvious choice by many vessel designers, ship owners and yards throughout the world. Our products and services meet the highest quality standards, perform reliably and efficiently to exceed customers’ expectations and assure market competitiveness. The design of Tranberg’s navigation lights is based on many years of experience and research in the field of professional Marine lighting. Carefully selected materials are used to ensure maximum performance, low maintenance and long trouble free life.
- Highlights - Integrated terminal box, no need for extra connection box Access to bulb from top - enabling quick replacement of light source Supplied with isolators to be used between the lantern and hull/mast (such as aluminium) to prevent corrosion Durable bracket in stainless steel (SS316L) can be used when installing the lantern on 1” or 2” pipes 20 years warranty on lantern Extremely durable to mechanical deterioration Designed for use in arctic and tropical waters Small dimensions Resistant to vibrations Lens of through-coloured glass ‒ no decolouration throughout the lifetime of the lantern The lens can easily be cleaned for paint, bird droppings, pollution and oil
- Product Description - Navigation light 2870 SB lamp
- Product Type - TEF28701019
- Title Product Variant Technical Data - TEF28701019 Lantern vessels >20m
- WebCode - T2870A
Lighting Data
- Lamp - P28S lamp base
- Lamp type - Starboard
- Opening angle - 112.5 °
Mechanical Data
- Colour of glass - green
- Degree of protection (IP) - IP56
- Enclosure material - brass
- Material Dome - Lens made of stained glass
- Type of connection cable - Finely stranded, solid
242125
Integrated terminal box, no need for extra connection box
Access to bulb from top - enabling quick replacement of light source
Supplied with isolators to be used between the lantern and hull/mast (such as aluminium) to prevent corrosion
Durable bracket in stainless steel (SS316L) can be used when installing the lantern on 1” or 2” pipes
20 years warranty on lantern
Extremely durable to mechanical deterioration
Designed for use in arctic and tropical waters
Small dimensions
Resistant to vibrations
Lens of through-coloured glass ‒ no decolouration throughout the lifetime of the lantern
The lens can easily be cleaned for paint, bird droppings, pollution and oil
Ambient Conditions
- Ambient temperature - -52 °C ... +50 °C
- Ambient temperature max. - +50 °C
- Ambient temperature min. - -52 °C
Components
- Drilled holes - 1 x M20
- Screw connections - 1 x M20 Ø 6.5 – 14 mm
Electrical Data
- Power - 40.00 - 40.00 W
- Rated operational voltage AC - 24.00 - 24.00 V
Explosion Protection
- Ambient temperature °C - -52 - 50 °C
- Application range (zones) - 2
- ATEX gas certificate - PRESAFE 14 ATEX 5436X
- Gas explosion protection ATEX - II 3 G Ex nR IIC T5 Gc
- Gas explosion protection IECEx - Ex nR IIC T5 Gc
- IECEX gas certificate - IECEx PRE 14.0055X
General
- Functional Description - Extensively tested in rough environments, navigation lights from Tranberg are the obvious choice by many vessel designers, ship owners and yards throughout the world. Our products and services meet the highest quality standards, perform reliably and efficiently to exceed customers’ expectations and assure market competitiveness. The design of Tranberg’s navigation lights is based on many years of experience and research in the field of professional Marine lighting. Carefully selected materials are used to ensure maximum performance, low maintenance and long trouble free life.
- Highlights - Integrated terminal box, no need for extra connection box Access to bulb from top - enabling quick replacement of light source Supplied with isolators to be used between the lantern and hull/mast (such as aluminium) to prevent corrosion Durable bracket in stainless steel (SS316L) can be used when installing the lantern on 1” or 2” pipes 20 years warranty on lantern Extremely durable to mechanical deterioration Designed for use in arctic and tropical waters Small dimensions Resistant to vibrations Lens of through-coloured glass ‒ no decolouration throughout the lifetime of the lantern The lens can easily be cleaned for paint, bird droppings, pollution and oil
- Product Description - Navigation light 2870 P lamp
- Product Type - TEF28702019
- Title Product Variant Technical Data - TEF28702019 Lantern vessels >20m
- WebCode - T2870A
Lighting Data
- Lamp - P28S lamp base
- Lamp type - Port
- Opening angle - 112.5 °
Mechanical Data
- Colour of glass - red
- Degree of protection (IP) - IP56
- Enclosure material - brass
- Material Dome - Lens made of stained glass
- Type of connection cable - Finely stranded, solid
242128
Integrated terminal box, no need for extra connection box
Access to bulb from top - enabling quick replacement of light source
Supplied with isolators to be used between the lantern and hull/mast (such as aluminium) to prevent corrosion
Durable bracket in stainless steel (SS316L) can be used when installing the lantern on 1” or 2” pipes
20 years warranty on lantern
Extremely durable to mechanical deterioration
Designed for use in arctic and tropical waters
Small dimensions
Resistant to vibrations
Lens of through-coloured glass ‒ no decolouration throughout the lifetime of the lantern
The lens can easily be cleaned for paint, bird droppings, pollution and oil
Ambient Conditions
- Ambient temperature - -52 °C ... +50 °C
- Ambient temperature max. - +50 °C
- Ambient temperature min. - -52 °C
Components
- Drilled holes - 1 x M20
- Screw connections - 1 x M20 Ø 6.5 – 14 mm
Electrical Data
- Power - 40.00 - 40.00 W
- Rated operational voltage AC - 24.00 - 24.00 V
Explosion Protection
- Ambient temperature °C - -52 - 50 °C
- Application range (zones) - 2
- ATEX gas certificate - PRESAFE 14 ATEX 5436X
- Gas explosion protection ATEX - II 3 G Ex nR IIC T5 Gc
- Gas explosion protection IECEx - Ex nR IIC T5 Gc
- IECEX gas certificate - IECEx PRE 14.0055X
General
- Functional Description - Extensively tested in rough environments, navigation lights from Tranberg are the obvious choice by many vessel designers, ship owners and yards throughout the world. Our products and services meet the highest quality standards, perform reliably and efficiently to exceed customers’ expectations and assure market competitiveness. The design of Tranberg’s navigation lights is based on many years of experience and research in the field of professional Marine lighting. Carefully selected materials are used to ensure maximum performance, low maintenance and long trouble free life.
- Highlights - Integrated terminal box, no need for extra connection box Access to bulb from top - enabling quick replacement of light source Supplied with isolators to be used between the lantern and hull/mast (such as aluminium) to prevent corrosion Durable bracket in stainless steel (SS316L) can be used when installing the lantern on 1” or 2” pipes 20 years warranty on lantern Extremely durable to mechanical deterioration Designed for use in arctic and tropical waters Small dimensions Resistant to vibrations Lens of through-coloured glass ‒ no decolouration throughout the lifetime of the lantern The lens can easily be cleaned for paint, bird droppings, pollution and oil
- Product Description - Navigation light 2870 ST lamp
- Product Type - TEF28703319
- Title Product Variant Technical Data - TEF28703319 Lantern vessels >20m
- WebCode - T2870A
Lighting Data
- Lamp - P28S lamp base
- Lamp type - Stern cleats
- Opening angle - 135.0 °
Mechanical Data
- Colour of glass - yellow
- Degree of protection (IP) - IP56
- Enclosure material - brass
- Material Dome - Lens made of stained glass
- Type of connection cable - Finely stranded, solid
242130
Integrated terminal box, no need for extra connection box
Access to bulb from top - enabling quick replacement of light source
Supplied with isolators to be used between the lantern and hull/mast (such as aluminium) to prevent corrosion
Durable bracket in stainless steel (SS316L) can be used when installing the lantern on 1” or 2” pipes
20 years warranty on lantern
Extremely durable to mechanical deterioration
Designed for use in arctic and tropical waters
Small dimensions
Resistant to vibrations
Lens of through-coloured glass ‒ no decolouration throughout the lifetime of the lantern
The lens can easily be cleaned for paint, bird droppings, pollution and oil
Ambient Conditions
- Ambient temperature - -52 °C ... +50 °C
- Ambient temperature max. - +50 °C
- Ambient temperature min. - -52 °C
Components
- Drilled holes - 1 x M20
- Screw connections - 1 x M20 Ø 6.5 – 14 mm
Electrical Data
- Power - 40.00 - 40.00 W
- Rated operational voltage AC - 24.00 - 24.00 V
Explosion Protection
- Ambient temperature °C - -52 - 50 °C
- Application range (zones) - 2
- ATEX gas certificate - PRESAFE 14 ATEX 5436X
- Gas explosion protection ATEX - II 3 G Ex nR IIC T5 Gc
- Gas explosion protection IECEx - Ex nR IIC T5 Gc
- IECEX gas certificate - IECEx PRE 14.0055X
General
- Functional Description - Extensively tested in rough environments, navigation lights from Tranberg are the obvious choice by many vessel designers, ship owners and yards throughout the world. Our products and services meet the highest quality standards, perform reliably and efficiently to exceed customers’ expectations and assure market competitiveness. The design of Tranberg’s navigation lights is based on many years of experience and research in the field of professional Marine lighting. Carefully selected materials are used to ensure maximum performance, low maintenance and long trouble free life.
- Highlights - Integrated terminal box, no need for extra connection box Access to bulb from top - enabling quick replacement of light source Supplied with isolators to be used between the lantern and hull/mast (such as aluminium) to prevent corrosion Durable bracket in stainless steel (SS316L) can be used when installing the lantern on 1” or 2” pipes 20 years warranty on lantern Extremely durable to mechanical deterioration Designed for use in arctic and tropical waters Small dimensions Resistant to vibrations Lens of through-coloured glass ‒ no decolouration throughout the lifetime of the lantern The lens can easily be cleaned for paint, bird droppings, pollution and oil
- Product Description - Navigation light 2870 A lamp
- Product Type - TEF28705109
- Title Product Variant Technical Data - TEF28705109 Lantern vessels >20m
- WebCode - T2870A
Lighting Data
- Lamp - P28S lamp base
- Lamp type - Allround light
- Opening angle - 360.0 °
Mechanical Data
- Colour of glass - white
- Degree of protection (IP) - IP56
- Enclosure material - brass
- Material Dome - Lens made of stained glass
- Type of connection cable - Finely stranded, solid
242131
Integrated terminal box, no need for extra connection box
Access to bulb from top - enabling quick replacement of light source
Supplied with isolators to be used between the lantern and hull/mast (such as aluminium) to prevent corrosion
Durable bracket in stainless steel (SS316L) can be used when installing the lantern on 1” or 2” pipes
20 years warranty on lantern
Extremely durable to mechanical deterioration
Designed for use in arctic and tropical waters
Small dimensions
Resistant to vibrations
Lens of through-coloured glass ‒ no decolouration throughout the lifetime of the lantern
The lens can easily be cleaned for paint, bird droppings, pollution and oil
Ambient Conditions
- Ambient temperature - -52 °C ... +50 °C
- Ambient temperature max. - +50 °C
- Ambient temperature min. - -52 °C
Components
- Drilled holes - 1 x M20
- Screw connections - 1 x M20 Ø 6.5 – 14 mm
Electrical Data
- Power - 40.00 - 40.00 W
- Rated operational voltage AC - 24.00 - 24.00 V
Explosion Protection
- Ambient temperature °C - -52 - 50 °C
- Application range (zones) - 2
- ATEX gas certificate - PRESAFE 14 ATEX 5436X
- Gas explosion protection ATEX - II 3 G Ex nR IIC T5 Gc
- Gas explosion protection IECEx - Ex nR IIC T5 Gc
- IECEX gas certificate - IECEx PRE 14.0055X
General
- Functional Description - Extensively tested in rough environments, navigation lights from Tranberg are the obvious choice by many vessel designers, ship owners and yards throughout the world. Our products and services meet the highest quality standards, perform reliably and efficiently to exceed customers’ expectations and assure market competitiveness. The design of Tranberg’s navigation lights is based on many years of experience and research in the field of professional Marine lighting. Carefully selected materials are used to ensure maximum performance, low maintenance and long trouble free life.
- Highlights - Integrated terminal box, no need for extra connection box Access to bulb from top - enabling quick replacement of light source Supplied with isolators to be used between the lantern and hull/mast (such as aluminium) to prevent corrosion Durable bracket in stainless steel (SS316L) can be used when installing the lantern on 1” or 2” pipes 20 years warranty on lantern Extremely durable to mechanical deterioration Designed for use in arctic and tropical waters Small dimensions Resistant to vibrations Lens of through-coloured glass ‒ no decolouration throughout the lifetime of the lantern The lens can easily be cleaned for paint, bird droppings, pollution and oil
- Product Description - Navigation light 2870 A lamp
- Product Type - TEF28705119
- Title Product Variant Technical Data - TEF28705119 Lantern vessels >20m
- WebCode - T2870A
Lighting Data
- Lamp - P28S lamp base
- Lamp type - 1/2 allround light
- Opening angle - 181.0 °
Mechanical Data
- Colour of glass - white
- Degree of protection (IP) - IP56
- Enclosure material - brass
- Material Dome - Lens made of stained glass
- Type of connection cable - Finely stranded, solid
242140
Integrated terminal box, no need for extra connection box
Access to bulb from top - enabling quick replacement of light source
Supplied with isolators to be used between the lantern and hull/mast (such as aluminium) to prevent corrosion
Durable bracket in stainless steel (SS316L) can be used when installing the lantern on 1” or 2” pipes
20 years warranty on lantern
Extremely durable to mechanical deterioration
Designed for use in arctic and tropical waters
Small dimensions
Resistant to vibrations
Lens of through-coloured glass ‒ no decolouration throughout the lifetime of the lantern
The lens can easily be cleaned for paint, bird droppings, pollution and oil
Ambient Conditions
- Ambient temperature - -52 °C ... +50 °C
- Ambient temperature max. - +50 °C
- Ambient temperature min. - -52 °C
Components
- Drilled holes - 1 x M20
- Screw connections - 1 x M20 Ø 6.5 – 14 mm
Electrical Data
- Power - 40.00 - 40.00 W
- Rated operational voltage AC - 24.00 - 24.00 V
Explosion Protection
- Ambient temperature °C - -52 - 50 °C
- Application range (zones) - 2
- ATEX gas certificate - PRESAFE 14 ATEX 5436X
- Gas explosion protection ATEX - II 3 G Ex nR IIC T5 Gc
- Gas explosion protection IECEx - Ex nR IIC T5 Gc
- IECEX gas certificate - IECEx PRE 14.0055X
General
- Functional Description - Extensively tested in rough environments, navigation lights from Tranberg are the obvious choice by many vessel designers, ship owners and yards throughout the world. Our products and services meet the highest quality standards, perform reliably and efficiently to exceed customers’ expectations and assure market competitiveness. The design of Tranberg’s navigation lights is based on many years of experience and research in the field of professional Marine lighting. Carefully selected materials are used to ensure maximum performance, low maintenance and long trouble free life.
- Highlights - Integrated terminal box, no need for extra connection box Access to bulb from top - enabling quick replacement of light source Supplied with isolators to be used between the lantern and hull/mast (such as aluminium) to prevent corrosion Durable bracket in stainless steel (SS316L) can be used when installing the lantern on 1” or 2” pipes 20 years warranty on lantern Extremely durable to mechanical deterioration Designed for use in arctic and tropical waters Small dimensions Resistant to vibrations Lens of through-coloured glass ‒ no decolouration throughout the lifetime of the lantern The lens can easily be cleaned for paint, bird droppings, pollution and oil
- Product Description - Navigation light 2870 AG lamp
- Product Type - TEF28706109
- Title Product Variant Technical Data - TEF28706109 Lantern vessels >20m
- WebCode - T2870A
Lighting Data
- Lamp - P28S lamp base
- Lamp type - Allround light
- Opening angle - 360.0 °
Mechanical Data
- Colour of glass - green
- Degree of protection (IP) - IP56
- Enclosure material - brass
- Material Dome - Lens made of stained glass
- Type of connection cable - Finely stranded, solid
242141
Integrated terminal box, no need for extra connection box
Access to bulb from top - enabling quick replacement of light source
Supplied with isolators to be used between the lantern and hull/mast (such as aluminium) to prevent corrosion
Durable bracket in stainless steel (SS316L) can be used when installing the lantern on 1” or 2” pipes
20 years warranty on lantern
Extremely durable to mechanical deterioration
Designed for use in arctic and tropical waters
Small dimensions
Resistant to vibrations
Lens of through-coloured glass ‒ no decolouration throughout the lifetime of the lantern
The lens can easily be cleaned for paint, bird droppings, pollution and oil
Ambient Conditions
- Ambient temperature - -52 °C ... +50 °C
- Ambient temperature max. - +50 °C
- Ambient temperature min. - -52 °C
Components
- Drilled holes - 1 x M20
- Screw connections - 1 x M20 Ø 6.5 – 14 mm
Electrical Data
- Power - 40.00 - 40.00 W
- Rated operational voltage AC - 24.00 - 24.00 V
Explosion Protection
- Ambient temperature °C - -52 - 50 °C
- Application range (zones) - 2
- ATEX gas certificate - PRESAFE 14 ATEX 5436X
- Gas explosion protection ATEX - II 3 G Ex nR IIC T5 Gc
- Gas explosion protection IECEx - Ex nR IIC T5 Gc
- IECEX gas certificate - IECEx PRE 14.0055X
General
- Functional Description - Extensively tested in rough environments, navigation lights from Tranberg are the obvious choice by many vessel designers, ship owners and yards throughout the world. Our products and services meet the highest quality standards, perform reliably and efficiently to exceed customers’ expectations and assure market competitiveness. The design of Tranberg’s navigation lights is based on many years of experience and research in the field of professional Marine lighting. Carefully selected materials are used to ensure maximum performance, low maintenance and long trouble free life.
- Highlights - Integrated terminal box, no need for extra connection box Access to bulb from top - enabling quick replacement of light source Supplied with isolators to be used between the lantern and hull/mast (such as aluminium) to prevent corrosion Durable bracket in stainless steel (SS316L) can be used when installing the lantern on 1” or 2” pipes 20 years warranty on lantern Extremely durable to mechanical deterioration Designed for use in arctic and tropical waters Small dimensions Resistant to vibrations Lens of through-coloured glass ‒ no decolouration throughout the lifetime of the lantern The lens can easily be cleaned for paint, bird droppings, pollution and oil
- Product Description - Navigation light 2870 AG lamp
- Product Type - TEF28706119
- Title Product Variant Technical Data - TEF28706119 Lantern vessels >20m
- WebCode - T2870A
Lighting Data
- Lamp - P28S lamp base
- Lamp type - 1/2 allround light
- Opening angle - 181.0 °
Mechanical Data
- Colour of glass - green
- Degree of protection (IP) - IP56
- Enclosure material - brass
- Material Dome - Lens made of stained glass
- Type of connection cable - Finely stranded, solid
242146
Integrated terminal box, no need for extra connection box
Access to bulb from top - enabling quick replacement of light source
Supplied with isolators to be used between the lantern and hull/mast (such as aluminium) to prevent corrosion
Durable bracket in stainless steel (SS316L) can be used when installing the lantern on 1” or 2” pipes
20 years warranty on lantern
Extremely durable to mechanical deterioration
Designed for use in arctic and tropical waters
Small dimensions
Resistant to vibrations
Lens of through-coloured glass ‒ no decolouration throughout the lifetime of the lantern
The lens can easily be cleaned for paint, bird droppings, pollution and oil
Ambient Conditions
- Ambient temperature - -52 °C ... +50 °C
- Ambient temperature max. - +50 °C
- Ambient temperature min. - -52 °C
Components
- Drilled holes - 1 x M20
- Screw connections - 1 x M20 Ø 6.5 – 14 mm
Electrical Data
- Power - 40.00 - 40.00 W
- Rated operational voltage AC - 24.00 - 24.00 V
Explosion Protection
- Ambient temperature °C - -52 - 50 °C
- Application range (zones) - 2
- ATEX gas certificate - PRESAFE 14 ATEX 5436X
- Gas explosion protection ATEX - II 3 G Ex nR IIC T5 Gc
- Gas explosion protection IECEx - Ex nR IIC T5 Gc
- IECEX gas certificate - IECEx PRE 14.0055X
General
- Functional Description - Extensively tested in rough environments, navigation lights from Tranberg are the obvious choice by many vessel designers, ship owners and yards throughout the world. Our products and services meet the highest quality standards, perform reliably and efficiently to exceed customers’ expectations and assure market competitiveness. The design of Tranberg’s navigation lights is based on many years of experience and research in the field of professional Marine lighting. Carefully selected materials are used to ensure maximum performance, low maintenance and long trouble free life.
- Highlights - Integrated terminal box, no need for extra connection box Access to bulb from top - enabling quick replacement of light source Supplied with isolators to be used between the lantern and hull/mast (such as aluminium) to prevent corrosion Durable bracket in stainless steel (SS316L) can be used when installing the lantern on 1” or 2” pipes 20 years warranty on lantern Extremely durable to mechanical deterioration Designed for use in arctic and tropical waters Small dimensions Resistant to vibrations Lens of through-coloured glass ‒ no decolouration throughout the lifetime of the lantern The lens can easily be cleaned for paint, bird droppings, pollution and oil
- Product Description - Navigation light 2870 AR lamp
- Product Type - TEF28707109
- Title Product Variant Technical Data - TEF28707109 Lantern vessels >20m
- WebCode - T2870A
Lighting Data
- Lamp - P28S lamp base
- Lamp type - Allround light
- Opening angle - 360.0 °
Mechanical Data
- Colour of glass - red
- Degree of protection (IP) - IP56
- Enclosure material - brass
- Material Dome - Lens made of stained glass
- Type of connection cable - Finely stranded, solid
242147
Integrated terminal box, no need for extra connection box
Access to bulb from top - enabling quick replacement of light source
Supplied with isolators to be used between the lantern and hull/mast (such as aluminium) to prevent corrosion
Durable bracket in stainless steel (SS316L) can be used when installing the lantern on 1” or 2” pipes
20 years warranty on lantern
Extremely durable to mechanical deterioration
Designed for use in arctic and tropical waters
Small dimensions
Resistant to vibrations
Lens of through-coloured glass ‒ no decolouration throughout the lifetime of the lantern
The lens can easily be cleaned for paint, bird droppings, pollution and oil
Ambient Conditions
- Ambient temperature - -52 °C ... +50 °C
- Ambient temperature max. - +50 °C
- Ambient temperature min. - -52 °C
Components
- Drilled holes - 1 x M20
- Screw connections - 1 x M20 Ø 6.5 – 14 mm
Electrical Data
- Power - 40.00 - 40.00 W
- Rated operational voltage AC - 24.00 - 24.00 V
Explosion Protection
- Ambient temperature °C - -52 - 50 °C
- Application range (zones) - 2
- ATEX gas certificate - PRESAFE 14 ATEX 5436X
- Gas explosion protection ATEX - II 3 G Ex nR IIC T5 Gc
- Gas explosion protection IECEx - Ex nR IIC T5 Gc
- IECEX gas certificate - IECEx PRE 14.0055X
General
- Functional Description - Extensively tested in rough environments, navigation lights from Tranberg are the obvious choice by many vessel designers, ship owners and yards throughout the world. Our products and services meet the highest quality standards, perform reliably and efficiently to exceed customers’ expectations and assure market competitiveness. The design of Tranberg’s navigation lights is based on many years of experience and research in the field of professional Marine lighting. Carefully selected materials are used to ensure maximum performance, low maintenance and long trouble free life.
- Highlights - Integrated terminal box, no need for extra connection box Access to bulb from top - enabling quick replacement of light source Supplied with isolators to be used between the lantern and hull/mast (such as aluminium) to prevent corrosion Durable bracket in stainless steel (SS316L) can be used when installing the lantern on 1” or 2” pipes 20 years warranty on lantern Extremely durable to mechanical deterioration Designed for use in arctic and tropical waters Small dimensions Resistant to vibrations Lens of through-coloured glass ‒ no decolouration throughout the lifetime of the lantern The lens can easily be cleaned for paint, bird droppings, pollution and oil
- Product Description - Navigation light 2870 AR lamp
- Product Type - TEF28707119
- Title Product Variant Technical Data - TEF28707119 Lantern vessels >20m
- WebCode - T2870A
Lighting Data
- Lamp - P28S lamp base
- Lamp type - 1/2 allround light
- Opening angle - 181.0 °
Mechanical Data
- Colour of glass - red
- Degree of protection (IP) - IP56
- Enclosure material - brass
- Material Dome - Lens made of stained glass
- Type of connection cable - Finely stranded, solid
1 - 10 of 10 Part Numbers
