Bearing Assemblies - LVB Aluminum Series

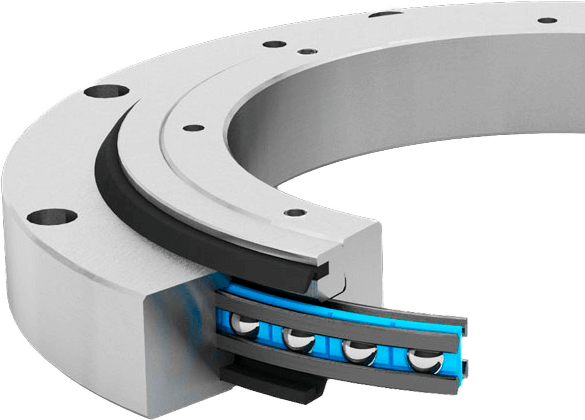

Brand: Franke GmbHFranke bearing assemblies type LVB are ready-to-install bearing assemblies with housing rings made of aluminium and integrated bearing elements.
Franke LVB are suitable for medium rotational speeds and accuracies and convince by their light weight. LVB bearing assemblies are available at short notice, some of them even from stock.
Designed as 4-point bearings, they can support equally high loads from all directions and are insensitive to shocks and vibrations.
LVB bearing assemblies are sealed on both sides and are set with preload.
FeaturesBearing Type
- Bearing assembly in aluminum design
Characteristics
- Ready to install, wide selection range
- Preloaded free from clearance
Diameter range
- From 100 - 1800 mm
Specifications
Brand
Material
- Inner/Outer Ring: AIZnMgCu05
- Ball Race Rings: 54SiCr6
- Rolling Elements: 100Cr6
- Cage: PA12
- Seal: NBR
Temperature of Use
- -20° to +80° C, Briefly up to +100° C
Circumferential Speed
- Maximum 5 m/s, without Seals Maximum 10 m/s
Screw Connection
- See Technical Information
Lubricant Grease
- Shell Gadus S3 V220C2
Relubrication
- Using Grease Nipples According to DIN 3405
Lubrication Schedule
- See Technical Information
