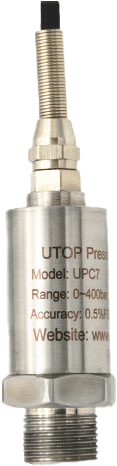

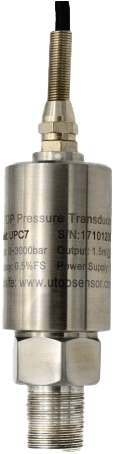

Based on strain gauge technology, UPC7 Strain Gauge Pressure Transducer uses strain gauges as sensing elements.

The strain gauges form a Wheatstone bridge on back of the diaphragm to sensing the deformation of the diaphragm, this deformation results from the pressure which act vertically to the diaphragm.

As the sizes of strain gauges are very small and can be designed so many different types to suit different situations, therefore the application of UPC7 Strain Gauge Pressure Transducer is very wide these days.

UPC7 Strain Gauge Pressure Transducer is mainly used for static or dynamic pressure measurement of flowing medium, for example power conduit equipment's input or output gas or liquid pressure, internal combustion engine pipeline pressure and so on.
Features
  • High measuring accuracy
  • Suitable for middle and high pressure measurement
  • Anti-corrosive, anti-impact
  • Pressure port is cavity or flush diaphragm

Specifications

Pressure Medium

  • Gas or Liquid Compatible to Stainless Steel

Pressure Ranges

  • 0 ~ 10...6000 bar

Overload Pressure

  • 150 % Full Scale

Output Signal

  • 1.5 mV/V (Standard), 2 mV/V

Accuracy

  • 0.25 % Full Scale, 0.5 % Full Scale (Standard)

Zero Unbalance

  • < ± 2 % Full Scale

Long-Term Stability

  • < 0.2 % Full Scale/year

Suggested Supply Voltage

  • 5 Vdc ~ 12 Vdc

Maximum Supply Voltage

  • 18 Vdc

Compensated Temperature Range

  • -10° ~ +60° C

Operating Temperature Range

  • -20° ~ +100° C

Temperature Coefficient of Zero

  • 0.2 % Full Scale/10° C

Temperature Coefficient of Span

  • 0.2 % Full Scale/10° C

Input Resistance

  • 380 ± 5 Ω, 1000 ± 5 Ω

Output Resistance

  • 350 ± 5 Ω, 1000 ± 5 Ω

Insulation Resistance

  • 100 MΩ @ 50 Vdc

Process Connection

  • G1/4” or others

Electrical Connection

  • 3 m PVC Cables

Material of Wetted Part

  • 17-4 PH

Material of Housing

  • 1Cr18Ni9Ti
