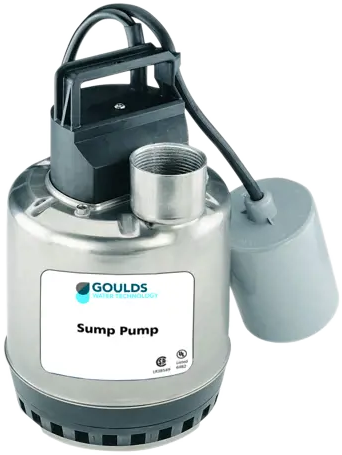

LSP03 LSP07 Submersible Sump Pumps

Brand: Goulds Water Technology

Features
  • Corrosion-resistant construction
  • Stainless Steel motor casing and fasteners
  • Glass-filled thermoplastic impeller and casing
  • Upper and lower heavy duty ball bearing construction
  • Motor is permanently lubricated for extended service life and is powered for continuous operation. All ratings are within the working limits of the motor.
  • Hard coated 400 series stainless steel shaft for improved corrosion resistance
  • Float switch is adjustable for various liquid levels. Easily removed for direct pump operation or switch replacement
  • Complete unit is lightweight, portable and easy to service
  • Available in manual and automatic versions. See next page for specific order numbers
  • A double labyrinth lip seal system protects the motor. It consists of three lip seals and a V-ring in addition to an impeller counterblade system which keeps solid particles away from the seal unit.

1 - 2 of 2 Part Numbers
LSP03
LSP03
1/3 HP, 115 V, 2.9 maximum amps
LSP07
LSP07
3/4 HP, 115 V (7.1 amps) or 230 V (3.5 amps)
1 - 2 of 2 Part Numbers

Specifications

Discharge size

  • 1 1⁄2" NPT

Capacities

  • to 57 GPM

Maximum head

  • 34 feet TDH

Maximum solids

  • 3⁄8" spherical

Temperature

  • 104º F (40º C) maximum liquid temperature

Maximum pump submergence

  • 10 ft. for LSP03
  • 16 ft. for LSP07

  • Basement Draining
  • Water Transfer
  • Dewatering
