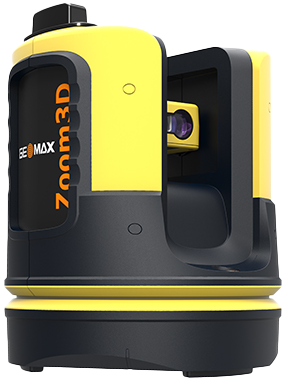

Zoom3D Series 3D Measuring System
Brand: GeoMax AGSpeed up your daily work indoors and outdoors with the straight forward setup, smart X-PAD MasterPlan Android software and one-man operation of the Zoom3D.
Measurements and layout have never been so fast and easy.
For construction professionals looking for one solution that allows them to work in a flexible and simple-to-operate manner, X-PAD MasterPlan is the solution that helps to modernize their business and improve their workflows efficiency.
Specifications
Brand
Measurement Range
- Horizontal 360°; Vertical 250°
- 0.5 (1.8 ft) - 50 m (150 ft)
Accuracy
- 5˝, Equates to 1.2 mm ( 3/64 in) @ 50 m (150 ft)
Self-leveling Range
- ±3°
Communication
- USB: Micro-B USB and Type A; WLAN
- Wireless, 50 m (150 ft) Range
Power Supply
- Internal: Li-Ion Battery 14.4 V / 63 Wh
- External: 24 VDC / 2.5A, Charging Time 8h
Operating Temperature
- -10° to 50° C (14° to 122° F)
Storage Temperature
- -25° to 70° C (-13° to 158° F)
Protection
- IP54
Remote Control
- 50 m (150 ft)
- Communication: Infrared (IR)
- Battery: 1 AA. 1.5 V
