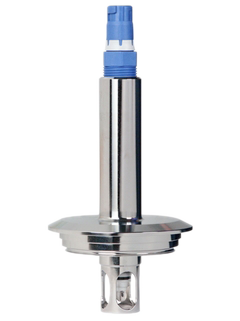

Process Assembly Unifit CPA442
Brand: Endress+Hauser Group Services AG
The Unifit CPA442 process assembly is the simple solution for pH/ORP or oxygen measurement in tanks and pipelines of hygienic and sterile applications.
Unifit is designed for inline cleaning and sterilization according to EHEDG and 3A criteria. You can be absolutely sure that your high-quality products are never contaminated but always completely safe.
Unifit CPA442 is intended for permanent installation in tanks and pipework in:
- Food and beverage
- Life sciences
- Water treatment
- Chemicals
It is suitable for use with pressures of up to 12 bar (stainless steel).
Features- Certified hygienic design: Complies with 3A standard 74-05 and the criteria of EHEDG Class I
- No contamination thanks to leak-tight, built-in electrode seal (molded seal)
- Electropolished surface prevents build-up of residues (Ra = 0.38 µm or 0.76 µm)
- Suitable for CIP and SIP
- Flexible adaptation to all applications by various hygienic process connections and flanges
Specifications
Material of Construction
- Holder: Stainless Steel
- Sealing: Different Materials Available (FDA Conform)
Process Temperature
- Max 140° C (284° F)
Process Pressure
- Max. 10 bar (Max. 145 psi)
Certifications & Approvals
- EHEDG
- 3A
- FDA
Dimensions
- 10 - 86 mm (0.39 - 3.47 inch)
Connection
- DN25 Thread Adapter Nut, Triclamp, Varivent, APV, Dairy Fitting DN50, Neumo Bi°Control
- Food and Beverage
- Life Sciences
- Water Treatment
- Chemicals
